Checks tracks of mobile weather stations, rejecting observations inconsistent with the rest of the track. More...

#include <TrackCheck.h>

Inheritance diagram for ufo::TrackCheck:

[legend]

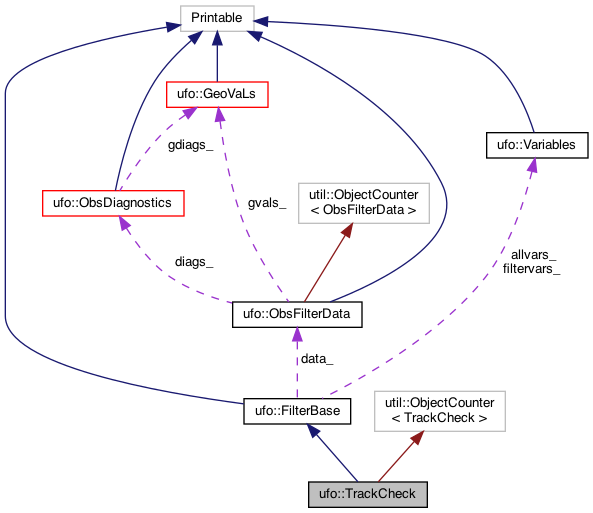

Collaboration diagram for ufo::TrackCheck:

[legend]

Classes
struct	CheckResults
	Results of cross-checking an observation with another (a "buddy"). More...

struct	ObsGroupPressureLocationTime

class	TrackObservation
	Attributes of an observation belonging to a track. More...

Public Member Functions
	TrackCheck (ioda::ObsSpace &obsdb, const eckit::Configuration &config, std::shared_ptr< ioda::ObsDataVector< int > > flags, std::shared_ptr< ioda::ObsDataVector< float > > obserr)

	~TrackCheck () override

Public Member Functions inherited from ufo::FilterBase
	FilterBase (ioda::ObsSpace &, const eckit::Configuration &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

	~FilterBase ()

void	preProcess ()

void	priorFilter (const GeoVaLs &)

void	postFilter (const ioda::ObsVector &, const ObsDiagnostics &)

oops::Variables	requiredVars () const

oops::Variables	requiredHdiagnostics () const

Static Public Member Functions
static const std::string	classname ()

Private Types
enum	Direction { FORWARD, BACKWARD, NUM_DIRECTIONS }

Private Member Functions
ObsGroupPressureLocationTime	collectObsPressuresLocationsTimes () const

void	flagRejectedTrackObservations (std::vector< size_t >::const_iterator trackObsIndicesBegin, std::vector< size_t >::const_iterator trackObsIndicesEnd, const std::vector< size_t > &validObsIds, const std::vector< TrackObservation > &trackObservations, std::vector< bool > &isRejected) const

void	print (std::ostream &) const override

void	applyFilter (const std::vector< bool > &, const Variables &, std::vector< std::vector< bool >> &) const override

int	qcFlag () const override

PiecewiseLinearInterpolation	makeMaxSpeedByPressureInterpolation () const
	Returns an interpolator mapping pressures (in Pa) to maximum accepted speeds (in km/s). More...

void	identifyRejectedObservationsInTrack (std::vector< size_t >::const_iterator trackObsIndicesBegin, std::vector< size_t >::const_iterator trackObsIndicesEnd, const std::vector< size_t > &validObsIds, const ObsGroupPressureLocationTime &obsPressureLoc, const PiecewiseLinearInterpolation &maxSpeedByPressure, std::vector< bool > &isRejected) const

std::vector< TrackObservation >	collectTrackObservations (std::vector< size_t >::const_iterator trackObsIndicesBegin, std::vector< size_t >::const_iterator trackObsIndicesEnd, const std::vector< size_t > &validObsIds, const ObsGroupPressureLocationTime &obsPressureLoc) const

TrackCheckUtils::SweepResult	sweepOverObservations (std::vector< TrackObservation > &trackObservations, const PiecewiseLinearInterpolation &maxValidSpeedAtPressure, std::vector< float > &workspace) const

Private Attributes
std::unique_ptr< TrackCheckParameters >	options_

Static Private Attributes
static const int	NO_PREVIOUS_SWEEP = -1

Additional Inherited Members
Protected Attributes inherited from ufo::FilterBase
ioda::ObsSpace &	obsdb_

const eckit::LocalConfiguration	config_

std::shared_ptr< ioda::ObsDataVector< int > >	flags_

std::shared_ptr< ioda::ObsDataVector< float > >	obserr_

ufo::Variables	allvars_

ufo::Variables	filtervars_

ObsFilterData	data_

Detailed Description

Checks tracks of mobile weather stations, rejecting observations inconsistent with the rest of the track.

Each track is checked separately. The algorithm performs a series of sweeps over the observations from each track. For each observation, multiple estimates of the instantaneous speed and ascent/descent rate are obtained by comparing the reported position with the positions reported during a number a nearby (earlier and later) observations that haven't been rejected in previous sweeps. An observation is rejected if a certain fraction of these estimates lie outside the valid range. Sweeps continue until one of them fails to reject any observations, i.e. the set of retained observations is self-consistent.

See TrackCheckParameters for the documentation of this filter's parameters.

Note: this filter was originally written with aircraft observations in mind. However, it can potentially be useful also for other observation types.

Definition at line 53 of file src/ufo/filters/TrackCheck.h.

Member Enumeration Documentation

◆ Direction

enum ufo::TrackCheck::Direction

private

Enumerator
FORWARD
BACKWARD
NUM_DIRECTIONS

Definition at line 55 of file src/ufo/filters/TrackCheck.h.

Constructor & Destructor Documentation

◆ TrackCheck()

ufo::TrackCheck::TrackCheck	(	ioda::ObsSpace &	obsdb,
		const eckit::Configuration &	config,
		std::shared_ptr< ioda::ObsDataVector< int > >	flags,
		std::shared_ptr< ioda::ObsDataVector< float > >	obserr
	)

Definition at line 96 of file TrackCheck.cc.

◆ ~TrackCheck()

ufo::TrackCheck::~TrackCheck ( )

override

Definition at line 108 of file TrackCheck.cc.

Member Function Documentation

◆ applyFilter()

void ufo::TrackCheck::applyFilter	(	const std::vector< bool > &	apply,
		const Variables &	filtervars,
		std::vector< std::vector< bool >> &	flagged
	)		const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 111 of file TrackCheck.cc.

Here is the call graph for this function:

◆ classname()

static const std::string ufo::TrackCheck::classname ( )

inlinestatic

Definition at line 78 of file src/ufo/filters/TrackCheck.h.

◆ collectObsPressuresLocationsTimes()

TrackCheck::ObsGroupPressureLocationTime ufo::TrackCheck::collectObsPressuresLocationsTimes ( ) const

private

Definition at line 135 of file TrackCheck.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ collectTrackObservations()

std::vector< TrackCheck::TrackObservation > ufo::TrackCheck::collectTrackObservations	(	std::vector< size_t >::const_iterator	trackObsIndicesBegin,
		std::vector< size_t >::const_iterator	trackObsIndicesEnd,
		const std::vector< size_t > &	validObsIds,
		const ObsGroupPressureLocationTime &	obsPressureLoc
	)		const

private

Definition at line 183 of file TrackCheck.cc.

Here is the caller graph for this function:

◆ flagRejectedTrackObservations()

void ufo::TrackCheck::flagRejectedTrackObservations	(	std::vector< size_t >::const_iterator	trackObsIndicesBegin,
		std::vector< size_t >::const_iterator	trackObsIndicesEnd,
		const std::vector< size_t > &	validObsIds,
		const std::vector< TrackObservation > &	trackObservations,
		std::vector< bool > &	isRejected
	)		const

private

Definition at line 283 of file TrackCheck.cc.

Here is the caller graph for this function:

◆ identifyRejectedObservationsInTrack()

void ufo::TrackCheck::identifyRejectedObservationsInTrack	(	std::vector< size_t >::const_iterator	trackObsIndicesBegin,
		std::vector< size_t >::const_iterator	trackObsIndicesEnd,
		const std::vector< size_t > &	validObsIds,
		const ObsGroupPressureLocationTime &	obsPressureLoc,
		const PiecewiseLinearInterpolation &	maxSpeedByPressure,
		std::vector< bool > &	isRejected
	)		const

private

Definition at line 162 of file TrackCheck.cc.

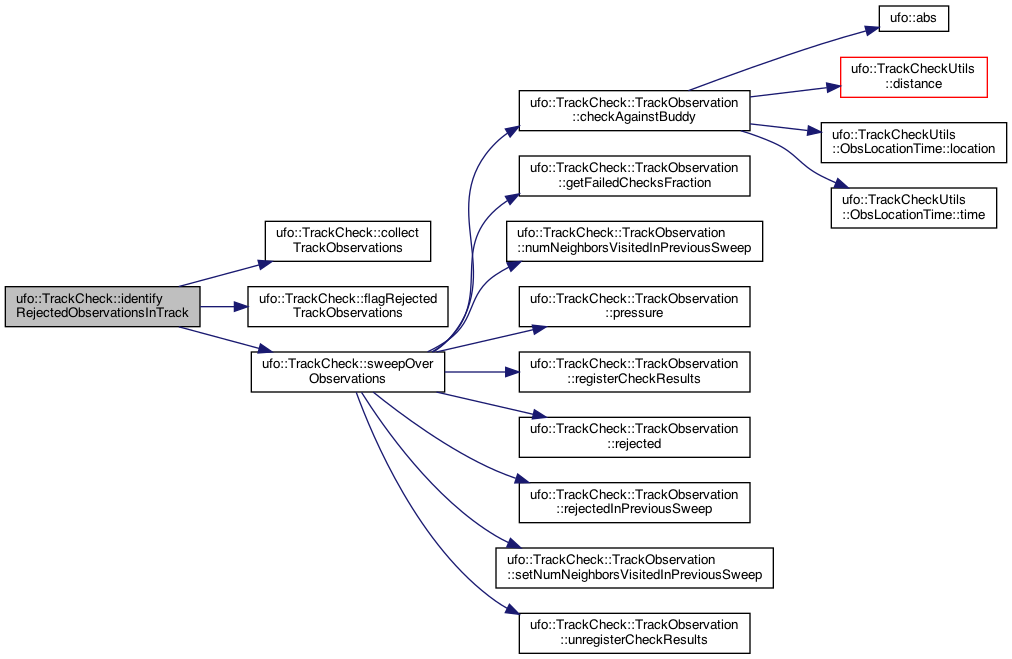

Here is the call graph for this function:

Here is the caller graph for this function:

◆ makeMaxSpeedByPressureInterpolation()

PiecewiseLinearInterpolation ufo::TrackCheck::makeMaxSpeedByPressureInterpolation ( ) const

private

Returns an interpolator mapping pressures (in Pa) to maximum accepted speeds (in km/s).

Definition at line 143 of file TrackCheck.cc.

Here is the caller graph for this function:

◆ print()

void ufo::TrackCheck::print ( std::ostream & os ) const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 296 of file TrackCheck.cc.

◆ qcFlag()

int ufo::TrackCheck::qcFlag ( ) const

inlineoverrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 144 of file src/ufo/filters/TrackCheck.h.

◆ sweepOverObservations()

TrackCheckUtils::SweepResult ufo::TrackCheck::sweepOverObservations	(	std::vector< TrackObservation > &	trackObservations,
		const PiecewiseLinearInterpolation &	maxValidSpeedAtPressure,
		std::vector< float > &	workspace
	)		const

private

Iterate once over all observations in trackObservations, rejecting those inconsistent with nearby observations.

Parameters

[in,out]	trackObservations	Attributes of all observations in a track. Modified in place.
[in]	Dependence	of the expected maximum speed on air pressure (and thus height).
[in,out]	workspace	A vector used internally by the function, passed by parameter to avoid repeated memory allocations and deallocations.

Definition at line 201 of file TrackCheck.cc.

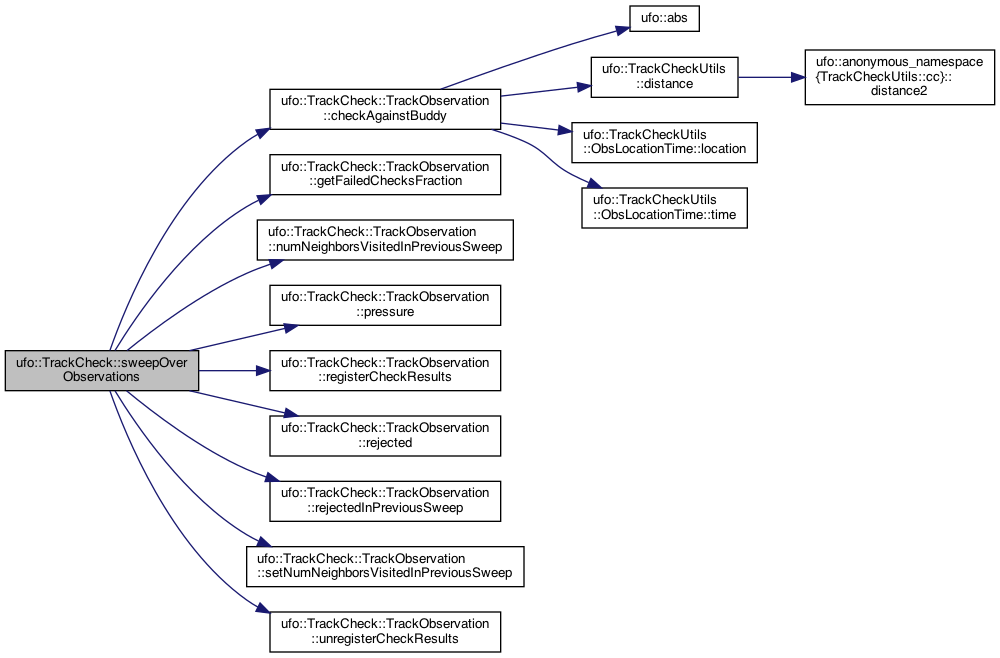

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ NO_PREVIOUS_SWEEP

const int ufo::TrackCheck::NO_PREVIOUS_SWEEP = -1

staticprivate

Definition at line 69 of file src/ufo/filters/TrackCheck.h.

◆ options_

std::unique_ptr<TrackCheckParameters> ufo::TrackCheck::options_

private

Definition at line 180 of file src/ufo/filters/TrackCheck.h.
