ufo::ProfileCheckRH Class Reference

Profile QC: relative humidity check. More...

#include <ProfileCheckRH.h>

Inheritance diagram for ufo::ProfileCheckRH:

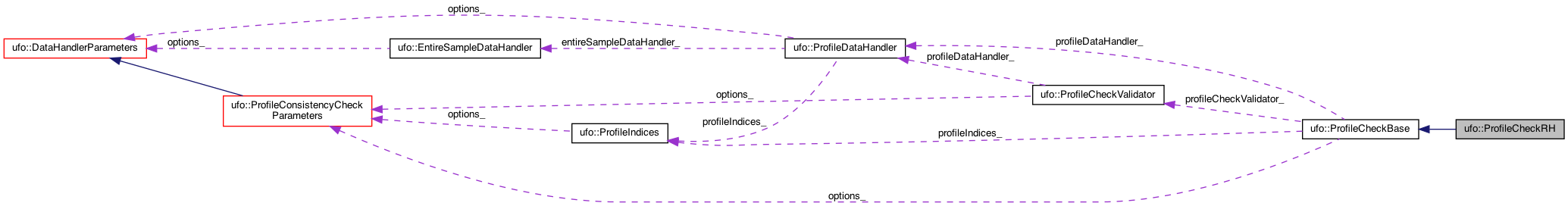

Collaboration diagram for ufo::ProfileCheckRH:

Public Member Functions
	ProfileCheckRH (const ProfileConsistencyCheckParameters &options, const ProfileIndices &profileIndices, ProfileDataHandler &profileDataHandler, ProfileCheckValidator &profileCheckValidator)
void	runCheck () override
	Run check. More...
void	fillValidator () override
	Fill variables in validator. More...
Public Member Functions inherited from ufo::ProfileCheckBase
	ProfileCheckBase (const ProfileConsistencyCheckParameters &options, const ProfileIndices &profileIndices, ProfileDataHandler &profileDataHandler, ProfileCheckValidator &profileCheckValidator)
virtual	~ProfileCheckBase ()
virtual bool	getResult ()
	Get result of check (default fail) More...

Private Attributes
std::vector< float >	Press_
	Observed pressure for selected levels (hPa) More...
std::vector< float >	Temp_
	Observed temperature for selected levels (K) More...
std::vector< float >	rh_
	Observed relative humidity for selected levels (%) More...
std::vector< float >	td_
	Observed dew point temperature for selected levels (K) More...
std::vector< float >	tbk_
	Model temperature for selected levels (K) More...
std::vector< float >	rhbk_
	Model relative humidity for selected levels (%) More...
std::vector< int >	FlagH_
	Flags for RH checks. More...
std::vector< int >	Indx_
	Indices of selected levels. More...

Additional Inherited Members
Protected Member Functions inherited from ufo::ProfileCheckBase
template<typename T >
void	correctVector (const std::vector< T > &v1, const std::vector< T > &v2, std::vector< T > &vout)
	Apply correction to vector of values. More...
Protected Attributes inherited from ufo::ProfileCheckBase
const ProfileConsistencyCheckParameters &	options_
	Configurable parameters. More...
const ProfileIndices &	profileIndices_
	Indices of profile's observations in the entire sample. More...
ProfileDataHandler &	profileDataHandler_
	Profile data handler. More...
ProfileCheckValidator &	profileCheckValidator_
	Profile check validator. More...
const float	missingValueFloat = util::missingValue(1.0f)
	Missing value (float) More...

Detailed Description

Profile QC: relative humidity check.

• Check for increasing dew-point at the top of cloud levels (cloud errors).
• Check for large humidity errors at the top of the profile (hi-lev errors).

Definition at line 30 of file ProfileCheckRH.h.

Constructor & Destructor Documentation

ProfileCheckRH()

ufo::ProfileCheckRH::ProfileCheckRH	(	const ProfileConsistencyCheckParameters &	options,
		const ProfileIndices &	profileIndices,
		ProfileDataHandler &	profileDataHandler,
		ProfileCheckValidator &	profileCheckValidator
	)

Definition at line 15 of file ProfileCheckRH.cc.

Member Function Documentation

fillValidator()

void ufo::ProfileCheckRH::fillValidator ( )

overridevirtual

Fill variables in validator.

Implements ufo::ProfileCheckBase.

Definition at line 193 of file ProfileCheckRH.cc.

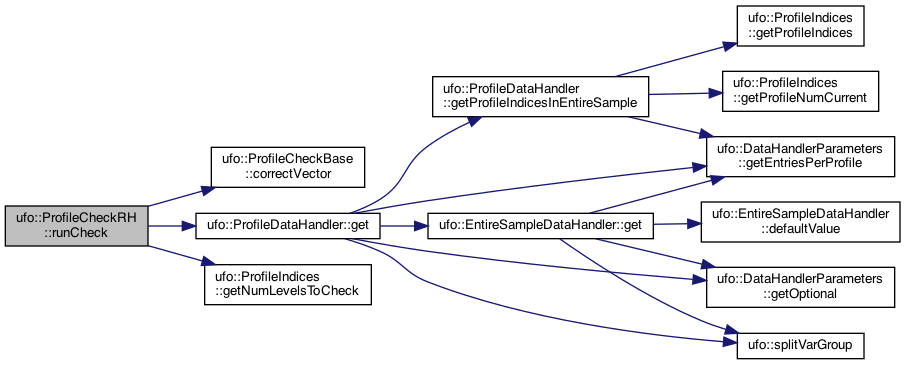

Here is the call graph for this function:

runCheck()

void ufo::ProfileCheckRH::runCheck ( )

overridevirtual

Run check.

Implements ufo::ProfileCheckBase.

Definition at line 23 of file ProfileCheckRH.cc.

Here is the call graph for this function:

Member Data Documentation

FlagH_

std::vector<int> ufo::ProfileCheckRH::FlagH_

private

Flags for RH checks.

Definition at line 63 of file ProfileCheckRH.h.

Indx_

std::vector<int> ufo::ProfileCheckRH::Indx_

private

Indices of selected levels.

Definition at line 66 of file ProfileCheckRH.h.

Press_

std::vector<float> ufo::ProfileCheckRH::Press_

private

Observed pressure for selected levels (hPa)

Definition at line 45 of file ProfileCheckRH.h.

rh_

std::vector<float> ufo::ProfileCheckRH::rh_

private

Observed relative humidity for selected levels (%)

Definition at line 51 of file ProfileCheckRH.h.

rhbk_

std::vector<float> ufo::ProfileCheckRH::rhbk_

private

Model relative humidity for selected levels (%)

Definition at line 60 of file ProfileCheckRH.h.

tbk_

std::vector<float> ufo::ProfileCheckRH::tbk_

private

Model temperature for selected levels (K)

Definition at line 57 of file ProfileCheckRH.h.

td_

std::vector<float> ufo::ProfileCheckRH::td_

private

Observed dew point temperature for selected levels (K)

Definition at line 54 of file ProfileCheckRH.h.

Temp_

std::vector<float> ufo::ProfileCheckRH::Temp_

private

Observed temperature for selected levels (K)

Definition at line 48 of file ProfileCheckRH.h.

---

The documentation for this class was generated from the following files:

• ProfileCheckRH.h
• ProfileCheckRH.cc
