Profile QC: compare geopotential height data against model background values using a Bayesian method. This check can be performed on both reported level data and on data which have been averaged onto model levels. QC flags are not set for reported level data so that all levels (except those with PGE > 0.999) will be used in vertical averaging. More...

#include <ProfileCheckBackgroundGeopotentialHeight.h>

Inheritance diagram for ufo::ProfileCheckBackgroundGeopotentialHeight:

[legend]

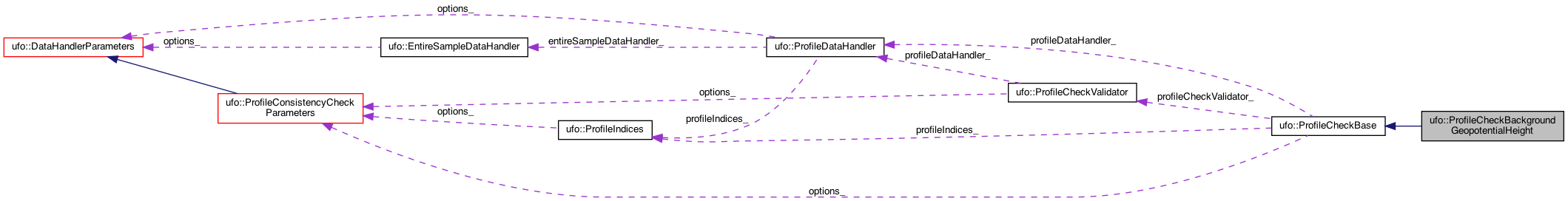

Collaboration diagram for ufo::ProfileCheckBackgroundGeopotentialHeight:

[legend]

Public Member Functions
	ProfileCheckBackgroundGeopotentialHeight (const ProfileConsistencyCheckParameters &options, const ProfileIndices &profileIndices, ProfileDataHandler &profileDataHandler, ProfileCheckValidator &profileCheckValidator)

void	runCheck () override
	Run check. More...

void	fillValidator () override
	Fill variables in validator. More...

Public Member Functions inherited from ufo::ProfileCheckBase
	ProfileCheckBase (const ProfileConsistencyCheckParameters &options, const ProfileIndices &profileIndices, ProfileDataHandler &profileDataHandler, ProfileCheckValidator &profileCheckValidator)

virtual	~ProfileCheckBase ()

virtual bool	getResult ()
	Get result of check (default fail) More...

Additional Inherited Members
Protected Member Functions inherited from ufo::ProfileCheckBase
template<typename T >
void	correctVector (const std::vector< T > &v1, const std::vector< T > &v2, std::vector< T > &vout)
	Apply correction to vector of values. More...

Protected Attributes inherited from ufo::ProfileCheckBase
const ProfileConsistencyCheckParameters &	options_
	Configurable parameters. More...

const ProfileIndices &	profileIndices_
	Indices of profile's observations in the entire sample. More...

ProfileDataHandler &	profileDataHandler_
	Profile data handler. More...

ProfileCheckValidator &	profileCheckValidator_
	Profile check validator. More...

const float	missingValueFloat = util::missingValue(1.0f)
	Missing value (float) More...

Detailed Description

Profile QC: compare geopotential height data against model background values using a Bayesian method. This check can be performed on both reported level data and on data which have been averaged onto model levels. QC flags are not set for reported level data so that all levels (except those with PGE > 0.999) will be used in vertical averaging.

Definition at line 38 of file ProfileCheckBackgroundGeopotentialHeight.h.

Constructor & Destructor Documentation

◆ ProfileCheckBackgroundGeopotentialHeight()

ufo::ProfileCheckBackgroundGeopotentialHeight::ProfileCheckBackgroundGeopotentialHeight	(	const ProfileConsistencyCheckParameters &	options,
		const ProfileIndices &	profileIndices,
		ProfileDataHandler &	profileDataHandler,
		ProfileCheckValidator &	profileCheckValidator
	)
