Met Office's implementation of the buddy check. More...

#include <MetOfficeBuddyCheck.h>

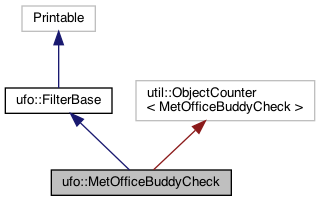

Inheritance diagram for ufo::MetOfficeBuddyCheck:

[legend]

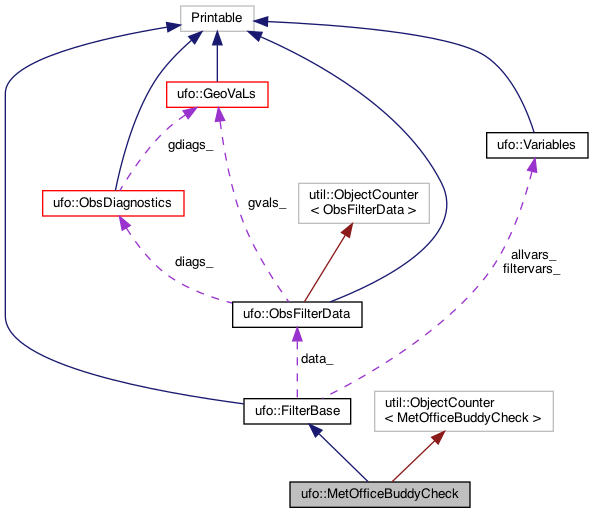

Collaboration diagram for ufo::MetOfficeBuddyCheck:

[legend]

Classes
struct	MetaData
	Metadata of all observations processed by the filter. More...

Public Member Functions
	MetOfficeBuddyCheck (ioda::ObsSpace &obsdb, const eckit::Configuration &config, std::shared_ptr< ioda::ObsDataVector< int > > flags, std::shared_ptr< ioda::ObsDataVector< float > > obserr)

	~MetOfficeBuddyCheck () override

Public Member Functions inherited from ufo::FilterBase
	FilterBase (ioda::ObsSpace &, const eckit::Configuration &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

	~FilterBase ()

void	preProcess ()

void	priorFilter (const GeoVaLs &)

void	postFilter (const ioda::ObsVector &, const ObsDiagnostics &)

oops::Variables	requiredVars () const

oops::Variables	requiredHdiagnostics () const

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &) const override

void	applyFilter (const std::vector< bool > &, const Variables &, std::vector< std::vector< bool >> &) const override

int	qcFlag () const override

std::vector< size_t >	getValidObservationIds (const std::vector< bool > &apply) const
	Returns a vector of IDs of all observations that should be buddy-checked. More...

MetaData	collectMetaData () const
	Collects and return smetadata of all observations. More...

std::vector< int >	getStationIds () const
	Returns a vector of integer-valued station IDs, obtained from the source indicated by the filter parameters. More...

std::vector< float >	calcBackgroundErrorHorizontalCorrelationScales (const std::vector< size_t > &validObsIds, const std::vector< float > &latitudes) const
	Calculates and returns background error correlation scales at observation locations. More...

std::vector< bool >	flagAndPrintVerboseObservations (const std::vector< size_t > &validObsIds, const std::vector< float > &latitudes, const std::vector< float > &longitudes, const std::vector< util::DateTime > &times, const std::vector< float > *pressures, const std::vector< int > &stationIds, const std::vector< float > &bgErrorHorizCorrScales) const
	Identifies observations whose buddy checks should be logged. More...

void	checkScalarSurfaceData (const std::vector< MetOfficeBuddyPair > &pairs, const std::vector< int > &flags, const std::vector< bool > &verbose, const std::vector< float > &bgErrorHorizCorrScales, const std::vector< int > &stationIds, const std::vector< util::DateTime > &datetimes, const std::vector< float > &obsValues, const std::vector< float > &obsBiases, const std::vector< float > &obsErrors, const std::vector< float > &bgValues, const std::vector< float > &bgErrors, std::vector< float > &pges) const
	Buddy check for scalar surface quantities. More...

void	checkVectorSurfaceData (const std::vector< MetOfficeBuddyPair > &pairs, const std::vector< int > &flags, const std::vector< bool > &verbose, const std::vector< float > &bgErrorHorizCorrScales, const std::vector< int > &stationIds, const std::vector< util::DateTime > &datetimes, const std::vector< float > &uObsValues, const std::vector< float > &uObsBiases, const std::vector< float > &vObsValues, const std::vector< float > &vObsBiases, const std::vector< float > &obsErrors, const std::vector< float > &uBgValues, const std::vector< float > &vBgValues, const std::vector< float > &bgErrors, std::vector< float > &pges) const
	Buddy check for vector (two-dimensional) surface quantities. More...

void	flagRejectedObservations (const Variables &filtervars, const std::map< std::string, std::vector< float >> &grossErrProbsByVarName, std::vector< std::vector< bool >> &flagged) const

Private Attributes
std::unique_ptr< MetOfficeBuddyCheckParameters >	options_

Additional Inherited Members
Protected Attributes inherited from ufo::FilterBase
ioda::ObsSpace &	obsdb_

const eckit::LocalConfiguration	config_

std::shared_ptr< ioda::ObsDataVector< int > >	flags_

std::shared_ptr< ioda::ObsDataVector< float > >	obserr_

ufo::Variables	allvars_

ufo::Variables	filtervars_

ObsFilterData	data_

Detailed Description

Met Office's implementation of the buddy check.

The filter cross-checks observations taken at nearby locations against each other, updating their gross error probabilities (PGEs) and rejecting observations whose PGE exceeds a threshold specified in the filter parameters.

Variables to be checked should be specified using the "filter variables" YAML option. Currently only surface (single-level) variables are supported. Variables can be either scalar or vector (with two Cartesian components, such as the eastward and northward wind components). In the latter case the two components need to specified one after the other in the "filter variables" list, with the first component having the first_component_of_two option set to true. Example:

filter variables:
- name: air_temperature
- name: eastward_wind
  options:
    first_component_of_two: true
- name: northward_wind

See MetOfficeBuddyCheckParameters for the documentation of the other available parameters.

Definition at line 66 of file src/ufo/filters/MetOfficeBuddyCheck.h.

Constructor & Destructor Documentation

◆ MetOfficeBuddyCheck()

ufo::MetOfficeBuddyCheck::MetOfficeBuddyCheck	(	ioda::ObsSpace &	obsdb,
		const eckit::Configuration &	config,
		std::shared_ptr< ioda::ObsDataVector< int > >	flags,
		std::shared_ptr< ioda::ObsDataVector< float > >	obserr
	)

Definition at line 98 of file MetOfficeBuddyCheck.cc.

◆ ~MetOfficeBuddyCheck()

ufo::MetOfficeBuddyCheck::~MetOfficeBuddyCheck ( )

override

Definition at line 112 of file MetOfficeBuddyCheck.cc.

Member Function Documentation

◆ applyFilter()

void ufo::MetOfficeBuddyCheck::applyFilter	(	const std::vector< bool > &	apply,
		const Variables &	filtervars,
		std::vector< std::vector< bool >> &	flagged
	)		const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 115 of file MetOfficeBuddyCheck.cc.

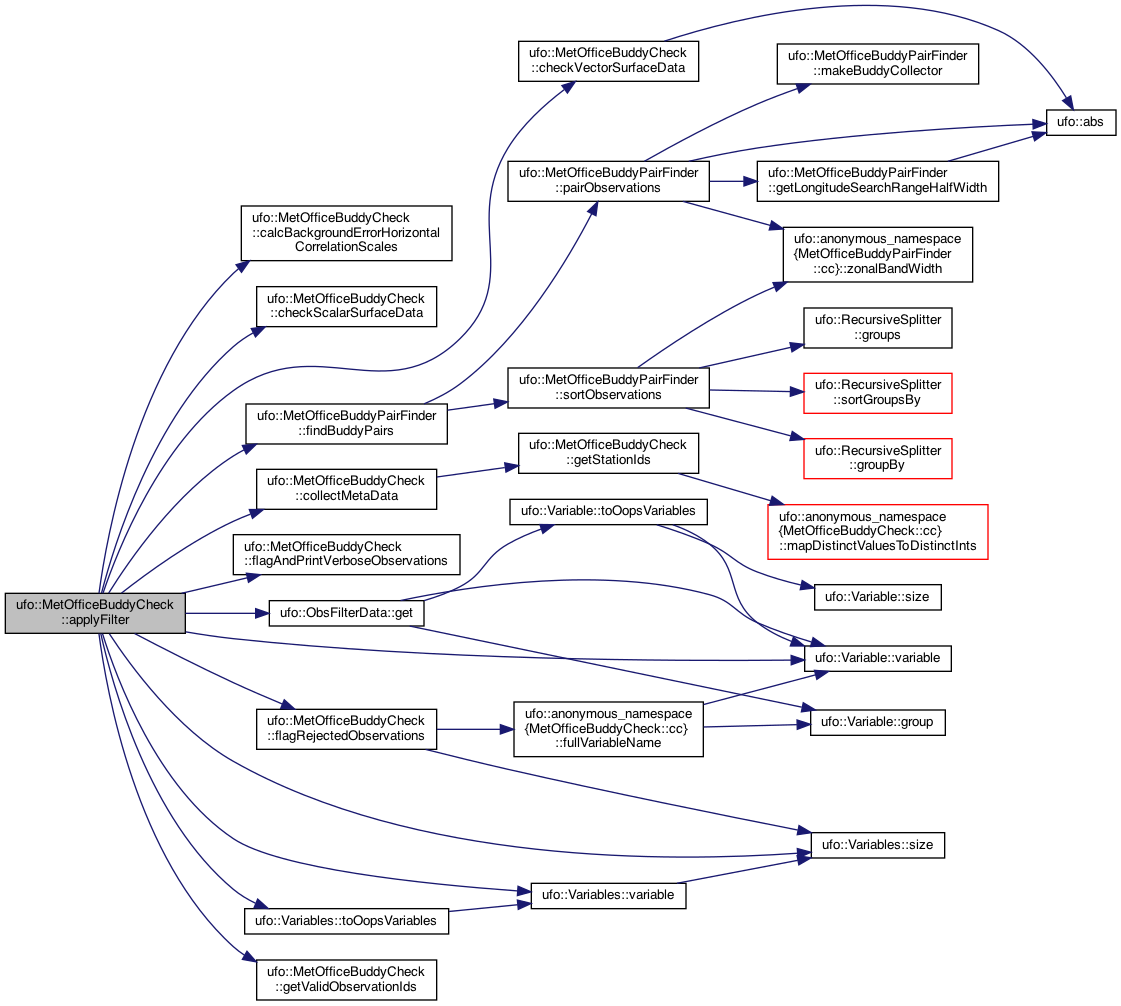

Here is the call graph for this function:

◆ calcBackgroundErrorHorizontalCorrelationScales()

std::vector< float > ufo::MetOfficeBuddyCheck::calcBackgroundErrorHorizontalCorrelationScales	(	const std::vector< size_t > &	validObsIds,
		const std::vector< float > &	latitudes
	)		const

private

Calculates and returns background error correlation scales at observation locations.

Only elements with indices corresponding to those of valid observations are filled in.

Definition at line 293 of file MetOfficeBuddyCheck.cc.

Here is the caller graph for this function:

◆ checkScalarSurfaceData()

void ufo::MetOfficeBuddyCheck::checkScalarSurfaceData	(	const std::vector< MetOfficeBuddyPair > &	pairs,
		const std::vector< int > &	flags,
		const std::vector< bool > &	verbose,
		const std::vector< float > &	bgErrorHorizCorrScales,
		const std::vector< int > &	stationIds,
		const std::vector< util::DateTime > &	datetimes,
		const std::vector< float > &	obsValues,
		const std::vector< float > &	obsBiases,
		const std::vector< float > &	obsErrors,
		const std::vector< float > &	bgValues,
		const std::vector< float > &	bgErrors,
		std::vector< float > &	pges
	)		const

private

Buddy check for scalar surface quantities.

Method: see the OPS Scientific Documentation Paper 2, sections 3.6 and 3.7

Parameters

	pairs	Buddy pairs.
	flags	Observation flags associated with the variable being checked.
	verbose	Whether to log buddy checks involving particular observations.
	bgErrorHorizCorrScales	Background error horizontal correlation scales (in km).
	stationIds	Station IDs ("call signs").
	datetimes	Observation times.
	obsValues	Observed values (excluding bias corrections).
	obsBiases	Bias corrections.
	obsErrors	Estimated errors of observed values.
	bgValues	Background values.
	bgErrors	Estimated errors of background values.
[in,out]	pges	Gross error probabilities. These values are updated by the buddy check.

Definition at line 351 of file MetOfficeBuddyCheck.cc.

Here is the caller graph for this function:

◆ checkVectorSurfaceData()

void ufo::MetOfficeBuddyCheck::checkVectorSurfaceData	(	const std::vector< MetOfficeBuddyPair > &	pairs,
		const std::vector< int > &	flags,
		const std::vector< bool > &	verbose,
		const std::vector< float > &	bgErrorHorizCorrScales,
		const std::vector< int > &	stationIds,
		const std::vector< util::DateTime > &	datetimes,
		const std::vector< float > &	uObsValues,
		const std::vector< float > &	uObsBiases,
		const std::vector< float > &	vObsValues,
		const std::vector< float > &	vObsBiases,
		const std::vector< float > &	obsErrors,
		const std::vector< float > &	uBgValues,
		const std::vector< float > &	vBgValues,
		const std::vector< float > &	bgErrors,
		std::vector< float > &	pges
	)		const

private

Buddy check for vector (two-dimensional) surface quantities.

Method: see the OPS Scientific Documentation Paper 2, sections 3.6 and 3.7

Parameters

	pairs	Buddy pairs.
	flags	Observation flags associated with the variable being checked.
	verbose	Whether to log buddy checks involving particular observations.
	bgErrorHorizCorrScales	Background error horizontal correlation scales (in km).
	stationIds	Station IDs ("call signs").
	datetimes	Observation times.
	uObsValues	Observed values of the first component, u (excluding bias corrections).
	uObsBiases	Bias corrections for u.
	vObsValues	Observed values of the second component, v (excluding bias corrections).
	vObsBiases	Bias corrections for v.
	obsErrors	Estimated errors of observed values (u or v).
	uBgValues	Background values of u.
	vBgValues	Background values of v.
	bgErrors	Estimated errors of background values (u or v).
[in,out]	pges	Probabilities of gross error in u or v. These values are updated by the buddy check.

Definition at line 432 of file MetOfficeBuddyCheck.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ classname()

static const std::string ufo::MetOfficeBuddyCheck::classname ( )

inlinestatic

Definition at line 69 of file src/ufo/filters/MetOfficeBuddyCheck.h.

◆ collectMetaData()

MetOfficeBuddyCheck::MetaData ufo::MetOfficeBuddyCheck::collectMetaData ( ) const

private

Collects and return smetadata of all observations.

Definition at line 237 of file MetOfficeBuddyCheck.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ flagAndPrintVerboseObservations()

std::vector< bool > ufo::MetOfficeBuddyCheck::flagAndPrintVerboseObservations	(	const std::vector< size_t > &	validObsIds,
		const std::vector< float > &	latitudes,
		const std::vector< float > &	longitudes,
		const std::vector< util::DateTime > &	times,
		const std::vector< float > *	pressures,
		const std::vector< int > &	stationIds,
		const std::vector< float > &	bgErrorHorizCorrScales
	)		const

private

Identifies observations whose buddy checks should be logged.

This function identifies observations located in one of the boxes specified in the tracedBoxes option, prints the metadata of these observations and sets the corresponding elements of the returned vector to true. Functions performing buddy checks are expected to log buddy checks involving these observations.

Parameters

pressures Optional – may be null.

Definition at line 313 of file MetOfficeBuddyCheck.cc.

Here is the caller graph for this function:

◆ flagRejectedObservations()

void ufo::MetOfficeBuddyCheck::flagRejectedObservations	(	const Variables &	filtervars,
		const std::map< std::string, std::vector< float >> &	grossErrProbsByVarName,
		std::vector< std::vector< bool >> &	flagged
	)		const

private

Marks observations whose gross error probability is >= options_->rejectionThreshold as rejected by the buddy check.

Definition at line 551 of file MetOfficeBuddyCheck.cc.

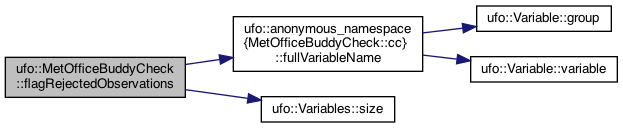

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getStationIds()

std::vector< int > ufo::MetOfficeBuddyCheck::getStationIds ( ) const

private

Returns a vector of integer-valued station IDs, obtained from the source indicated by the filter parameters.

Definition at line 259 of file MetOfficeBuddyCheck.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getValidObservationIds()

std::vector< size_t > ufo::MetOfficeBuddyCheck::getValidObservationIds ( const std::vector< bool > & apply ) const

private

Returns a vector of IDs of all observations that should be buddy-checked.

Definition at line 539 of file MetOfficeBuddyCheck.cc.

Here is the caller graph for this function:

◆ print()

void ufo::MetOfficeBuddyCheck::print ( std::ostream & os ) const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 569 of file MetOfficeBuddyCheck.cc.

◆ qcFlag()

int ufo::MetOfficeBuddyCheck::qcFlag ( ) const

inlineoverrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 83 of file src/ufo/filters/MetOfficeBuddyCheck.h.

Member Data Documentation

◆ options_

std::unique_ptr<MetOfficeBuddyCheckParameters> ufo::MetOfficeBuddyCheck::options_

private

Definition at line 217 of file src/ufo/filters/MetOfficeBuddyCheck.h.

The documentation for this class was generated from the following files:
