Group observations into grid cells and preserve only one observation in each cell. More...

#include <Gaussian_Thinning.h>

Inheritance diagram for ufo::Gaussian_Thinning:

[legend]

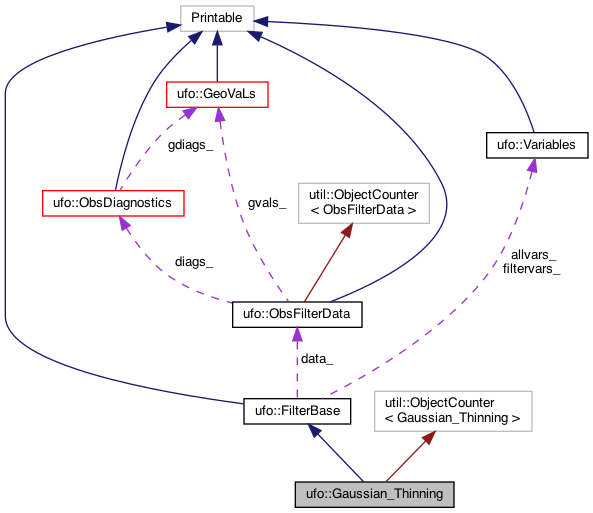

Collaboration diagram for ufo::Gaussian_Thinning:

[legend]

Public Member Functions
	Gaussian_Thinning (ioda::ObsSpace &obsdb, const eckit::Configuration &config, std::shared_ptr< ioda::ObsDataVector< int > > flags, std::shared_ptr< ioda::ObsDataVector< float > > obserr)

	~Gaussian_Thinning () override

Public Member Functions inherited from ufo::FilterBase
	FilterBase (ioda::ObsSpace &, const eckit::Configuration &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

	~FilterBase ()

void	preProcess ()

void	priorFilter (const GeoVaLs &)

void	postFilter (const ioda::ObsVector &, const ObsDiagnostics &)

oops::Variables	requiredVars () const

oops::Variables	requiredHdiagnostics () const

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &) const override

void	applyFilter (const std::vector< bool > &, const Variables &, std::vector< std::vector< bool >> &) const override

int	qcFlag () const override

std::vector< size_t >	getValidObservationIds (const std::vector< bool > &apply, const ParallelObsDistribution &obsDistribution) const

void	groupObservationsByCategory (const std::vector< size_t > &validObsIds, const ParallelObsDistribution &obsDistribution, RecursiveSplitter &splitter) const

void	groupObservationsBySpatialLocation (const std::vector< size_t > &validObsIds, const DistanceCalculator &distanceCalculator, const ParallelObsDistribution &obsDistribution, RecursiveSplitter &splitter, std::vector< float > &distancesToBinCenter) const

void	groupObservationsByPressure (const std::vector< size_t > &validObsIds, const DistanceCalculator &distanceCalculator, const ParallelObsDistribution &obsDistribution, RecursiveSplitter &splitter, std::vector< float > &distancesToBinCenter) const

void	groupObservationsByTime (const std::vector< size_t > &validObsIds, const DistanceCalculator &distanceCalculator, const ParallelObsDistribution &obsDistribution, RecursiveSplitter &splitter, std::vector< float > &distancesToBinCenter) const

std::vector< bool >	identifyThinnedObservations (const std::vector< size_t > &validObsIds, const ParallelObsDistribution &obsDistribution, const RecursiveSplitter &splitter, const std::vector< float > &distancesToBinCenter) const

std::function< bool(size_t, size_t)>	makeObservationComparator (const std::vector< size_t > &validObsIds, const std::vector< float > &distancesToBinCenter, const ParallelObsDistribution &obsDistribution) const

void	flagThinnedObservations (const std::vector< bool > &isThinned, const ParallelObsDistribution &obsDistribution, std::vector< std::vector< bool > > &flagged) const

Static Private Member Functions
static boost::optional< SpatialBinSelector >	makeSpatialBinSelector (const GaussianThinningParameters &options)

static boost::optional< EquispacedBinSelector >	makePressureBinSelector (const GaussianThinningParameters &options)

static boost::optional< EquispacedBinSelector >	makeTimeBinSelector (const GaussianThinningParameters &options, util::DateTime &timeOffset)

static std::unique_ptr< DistanceCalculator >	makeDistanceCalculator (const GaussianThinningParameters &options)

Private Attributes
std::unique_ptr< GaussianThinningParameters >	options_

Additional Inherited Members
Protected Attributes inherited from ufo::FilterBase
ioda::ObsSpace &	obsdb_

const eckit::LocalConfiguration	config_

std::shared_ptr< ioda::ObsDataVector< int > >	flags_

std::shared_ptr< ioda::ObsDataVector< float > >	obserr_

ufo::Variables	allvars_

ufo::Variables	filtervars_

ObsFilterData	data_

Detailed Description

Group observations into grid cells and preserve only one observation in each cell.

Cell assignment can be based on an arbitrary combination of:

horizontal position
vertical position (in terms of air pressure)
time
category (arbitrary integer associated with each observation).

Selection of the observation to preserve in each cell is based on

its position in the cell
optionally, its priority.

See GaussianThinningParameters for the documentation of the available options.

Definition at line 58 of file Gaussian_Thinning.h.

Constructor & Destructor Documentation

◆ Gaussian_Thinning()

ufo::Gaussian_Thinning::Gaussian_Thinning	(	ioda::ObsSpace &	obsdb,
		const eckit::Configuration &	config,
		std::shared_ptr< ioda::ObsDataVector< int > >	flags,
		std::shared_ptr< ioda::ObsDataVector< float > >	obserr
	)

Definition at line 54 of file Gaussian_Thinning.cc.

◆ ~Gaussian_Thinning()

ufo::Gaussian_Thinning::~Gaussian_Thinning ( )

override

Definition at line 68 of file Gaussian_Thinning.cc.

Member Function Documentation

◆ applyFilter()

void ufo::Gaussian_Thinning::applyFilter	(	const std::vector< bool > &	apply,
		const Variables &	filtervars,
		std::vector< std::vector< bool >> &	flagged
	)		const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 73 of file Gaussian_Thinning.cc.

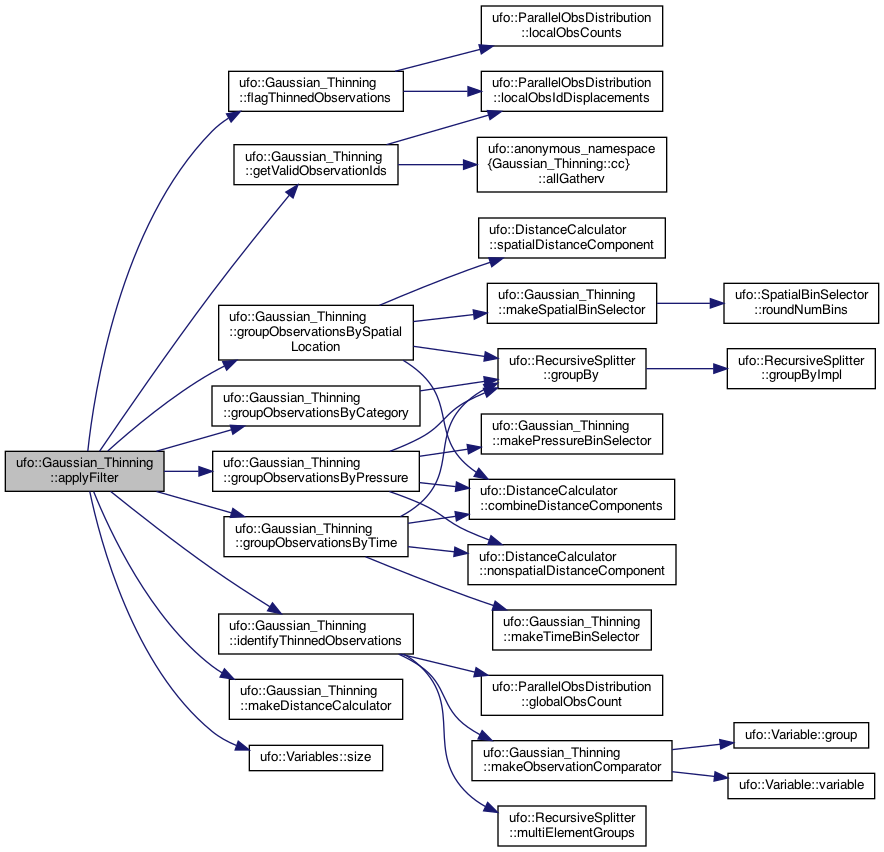

Here is the call graph for this function:

◆ classname()

static const std::string ufo::Gaussian_Thinning::classname ( )

inlinestatic

Definition at line 61 of file Gaussian_Thinning.h.

◆ flagThinnedObservations()

void ufo::Gaussian_Thinning::flagThinnedObservations	(	const std::vector< bool > &	isThinned,
		const ParallelObsDistribution &	obsDistribution,
		std::vector< std::vector< bool > > &	flagged
	)		const

private

Definition at line 424 of file Gaussian_Thinning.cc.

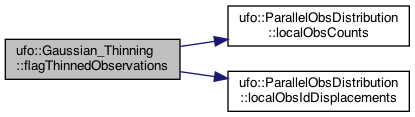

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getValidObservationIds()

std::vector< size_t > ufo::Gaussian_Thinning::getValidObservationIds	(	const std::vector< bool > &	apply,
		const ParallelObsDistribution &	obsDistribution
	)		const

private

Definition at line 103 of file Gaussian_Thinning.cc.

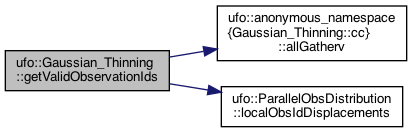

Here is the call graph for this function:

Here is the caller graph for this function:

◆ groupObservationsByCategory()

void ufo::Gaussian_Thinning::groupObservationsByCategory	(	const std::vector< size_t > &	validObsIds,
		const ParallelObsDistribution &	obsDistribution,
		RecursiveSplitter &	splitter
	)		const

private

Definition at line 216 of file Gaussian_Thinning.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ groupObservationsByPressure()

void ufo::Gaussian_Thinning::groupObservationsByPressure	(	const std::vector< size_t > &	validObsIds,
		const DistanceCalculator &	distanceCalculator,
		const ParallelObsDistribution &	obsDistribution,
		RecursiveSplitter &	splitter,
		std::vector< float > &	distancesToBinCenter
	)		const

private

Definition at line 235 of file Gaussian_Thinning.cc.

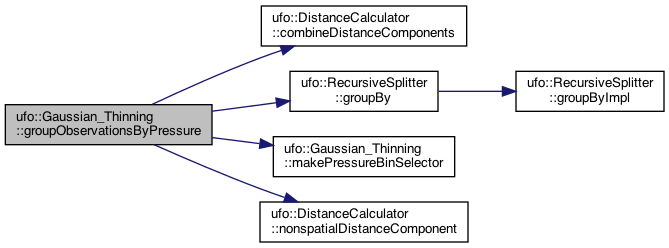

Here is the call graph for this function:

Here is the caller graph for this function:

◆ groupObservationsBySpatialLocation()

void ufo::Gaussian_Thinning::groupObservationsBySpatialLocation	(	const std::vector< size_t > &	validObsIds,
		const DistanceCalculator &	distanceCalculator,
		const ParallelObsDistribution &	obsDistribution,
		RecursiveSplitter &	splitter,
		std::vector< float > &	distancesToBinCenter
	)		const

private

Definition at line 130 of file Gaussian_Thinning.cc.

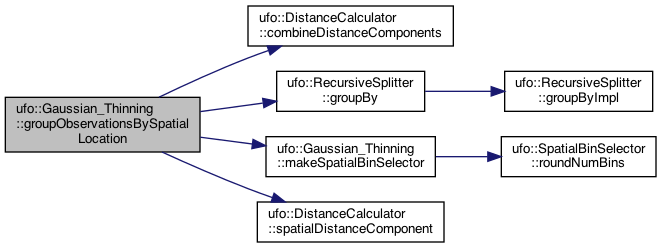

Here is the call graph for this function:

Here is the caller graph for this function:

◆ groupObservationsByTime()

void ufo::Gaussian_Thinning::groupObservationsByTime	(	const std::vector< size_t > &	validObsIds,
		const DistanceCalculator &	distanceCalculator,
		const ParallelObsDistribution &	obsDistribution,
		RecursiveSplitter &	splitter,
		std::vector< float > &	distancesToBinCenter
	)		const

private

Definition at line 294 of file Gaussian_Thinning.cc.

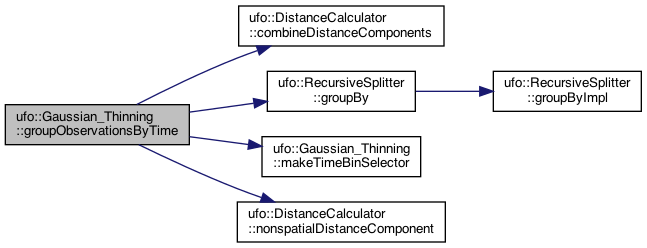

Here is the call graph for this function:

Here is the caller graph for this function:

◆ identifyThinnedObservations()

std::vector< bool > ufo::Gaussian_Thinning::identifyThinnedObservations	(	const std::vector< size_t > &	validObsIds,
		const ParallelObsDistribution &	obsDistribution,
		const RecursiveSplitter &	splitter,
		const std::vector< float > &	distancesToBinCenter
	)		const

private

Definition at line 369 of file Gaussian_Thinning.cc.

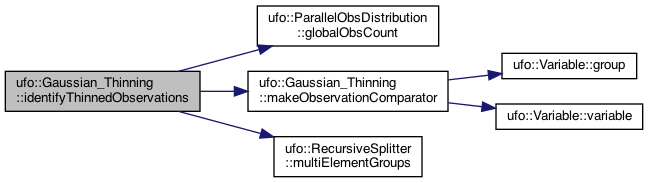

Here is the call graph for this function:

Here is the caller graph for this function:

◆ makeDistanceCalculator()

std::unique_ptr< DistanceCalculator > ufo::Gaussian_Thinning::makeDistanceCalculator ( const GaussianThinningParameters & options )

staticprivate

Definition at line 117 of file Gaussian_Thinning.cc.

Here is the caller graph for this function:

◆ makeObservationComparator()

std::function< bool(size_t, size_t)> ufo::Gaussian_Thinning::makeObservationComparator	(	const std::vector< size_t > &	validObsIds,
		const std::vector< float > &	distancesToBinCenter,
		const ParallelObsDistribution &	obsDistribution
	)		const

private

Definition at line 392 of file Gaussian_Thinning.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ makePressureBinSelector()

boost::optional< EquispacedBinSelector > ufo::Gaussian_Thinning::makePressureBinSelector ( const GaussianThinningParameters & options )

staticprivate

Definition at line 274 of file Gaussian_Thinning.cc.

Here is the caller graph for this function:

◆ makeSpatialBinSelector()

boost::optional< SpatialBinSelector > ufo::Gaussian_Thinning::makeSpatialBinSelector ( const GaussianThinningParameters & options )

staticprivate

Definition at line 188 of file Gaussian_Thinning.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ makeTimeBinSelector()

boost::optional< EquispacedBinSelector > ufo::Gaussian_Thinning::makeTimeBinSelector	(	const GaussianThinningParameters &	options,
		util::DateTime &	timeOffset
	)

staticprivate

Definition at line 337 of file Gaussian_Thinning.cc.

Here is the caller graph for this function:

◆ print()

void ufo::Gaussian_Thinning::print ( std::ostream & os ) const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 442 of file Gaussian_Thinning.cc.

◆ qcFlag()

int ufo::Gaussian_Thinning::qcFlag ( ) const

inlineoverrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 73 of file Gaussian_Thinning.h.

Member Data Documentation

◆ options_

std::unique_ptr<GaussianThinningParameters> ufo::Gaussian_Thinning::options_

private

Definition at line 128 of file Gaussian_Thinning.h.

The documentation for this class was generated from the following files:
