qg_obsdb_interface Module Reference

Functions/Subroutines
subroutine	qg_obsdb_setup_c (c_key_self, c_conf, c_winbgn, c_winend)
	Setup observation data. More...
subroutine	qg_obsdb_delete_c (c_key_self)
	Delete observation data. More...
subroutine	qg_obsdb_get_c (c_key_self, lgrp, c_grp, lcol, c_col, c_key_ovec)
	Get observation data. More...
subroutine	qg_obsdb_get_local_c (c_key_self, lgrp, c_grp, lcol, c_col, c_idxsize, c_idx, c_key_ovec)
	Get observations data for a local subset. More...
subroutine	qg_obsdb_put_c (c_key_self, lgrp, c_grp, lcol, c_col, c_key_ovec)
	Put observation data. More...
subroutine	qg_obsdb_has_c (c_key_self, lgrp, c_grp, lcol, c_col, c_has)
	Test observation data existence. More...
subroutine	qg_obsdb_locations_c (c_key_self, lgrp, c_grp, c_t1, c_t2, c_fields, c_times)
	Get locations from observation data. More...
subroutine	qg_obsdb_generate_c (c_key_self, lgrp, c_grp, c_conf, c_bgn, c_step, ktimes, kobs)
	Generate observation data. More...
subroutine	qg_obsdb_nobs_c (c_key_self, lgrp, c_grp, kobs)
	Get observation data size. More...

Function/Subroutine Documentation

qg_obsdb_delete_c()

subroutine qg_obsdb_interface::qg_obsdb_delete_c ( integer(c_int), intent(inout)  c_key_self )

private

Delete observation data.

Parameters

[in,out]

c_key_self

Observation data

Definition at line 59 of file qg_obsdb_interface.F90.

Here is the call graph for this function:

qg_obsdb_generate_c()

subroutine qg_obsdb_interface::qg_obsdb_generate_c ( integer(c_int), intent(in)  c_key_self, integer(c_int), intent(in)  lgrp, character(kind=c_char,len=1), dimension(lgrp+1), intent(in)  c_grp, type(c_ptr), intent(in), value  c_conf, type(c_ptr), intent(in), value  c_bgn, type(c_ptr), intent(in), value  c_step, integer(c_int), intent(in)  ktimes, integer(c_int), intent(inout)  kobs  )

private

Generate observation data.

Parameters

[in]	c_key_self	Observation data
[in]	lgrp	Group size
[in]	c_grp	Group name
[in]	c_conf	Configuration
[in]	c_bgn	Start time
[in]	c_step	Time-step
[in]	ktimes	Number of time-slots
[in,out]	kobs	Number of observations

Definition at line 235 of file qg_obsdb_interface.F90.

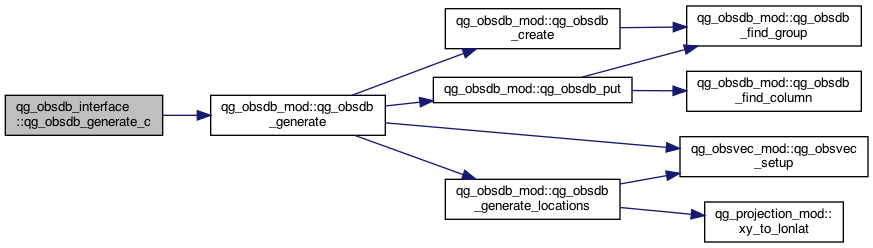

Here is the call graph for this function:

qg_obsdb_get_c()

subroutine qg_obsdb_interface::qg_obsdb_get_c ( integer(c_int), intent(in)  c_key_self, integer(c_int), intent(in)  lgrp, character(kind=c_char,len=1), dimension(lgrp+1), intent(in)  c_grp, integer(c_int), intent(in)  lcol, character(kind=c_char,len=1), dimension(lcol+1), intent(in)  c_col, integer(c_int), intent(in)  c_key_ovec  )

private

Get observation data.

Parameters

[in]	c_key_self	Observation data
[in]	lgrp	Group size
[in]	c_grp	Group name
[in]	lcol	Column size
[in]	c_col	Column name
[in]	c_key_ovec	Observation vector

Definition at line 81 of file qg_obsdb_interface.F90.

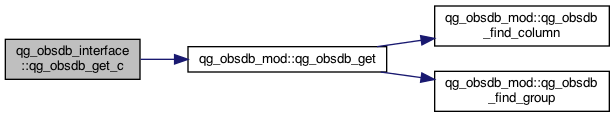

Here is the call graph for this function:

qg_obsdb_get_local_c()

subroutine qg_obsdb_interface::qg_obsdb_get_local_c ( integer(c_int), intent(in)  c_key_self, integer(c_int), intent(in)  lgrp, character(kind=c_char,len=1), dimension(lgrp+1), intent(in)  c_grp, integer(c_int), intent(in)  lcol, character(kind=c_char,len=1), dimension(lcol+1), intent(in)  c_col, integer(c_int), intent(in)  c_idxsize, integer(c_int), dimension(c_idxsize), intent(in)  c_idx, integer(c_int), intent(in)  c_key_ovec  )

private

Get observations data for a local subset.

Parameters

[in]	c_key_self	Observation data
[in]	lgrp	Group size
[in]	c_grp	Group name
[in]	lcol	Column size
[in]	c_col	Column name
[in]	c_key_ovec	Observation vector
[in]	c_idxsize	size of local obs index vector
[in]	c_idx	Index vector for local obs

Definition at line 111 of file qg_obsdb_interface.F90.

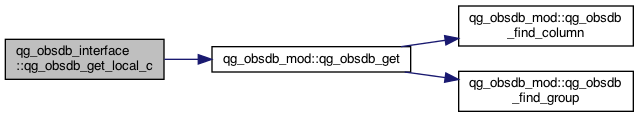

Here is the call graph for this function:

qg_obsdb_has_c()

subroutine qg_obsdb_interface::qg_obsdb_has_c ( integer(c_int), intent(in)  c_key_self, integer(c_int), intent(in)  lgrp, character(kind=c_char,len=1), dimension(lgrp+1), intent(in)  c_grp, integer(c_int), intent(in)  lcol, character(kind=c_char,len=1), dimension(lcol+1), intent(in)  c_col, integer(c_int), intent(out)  c_has  )

private

Test observation data existence.

Parameters

[in]	c_key_self	Observation data
[in]	lgrp	Group size
[in]	c_grp	Group name
[in]	lcol	Column size
[in]	c_col	Column name
[out]	c_has	Test flag

Definition at line 173 of file qg_obsdb_interface.F90.

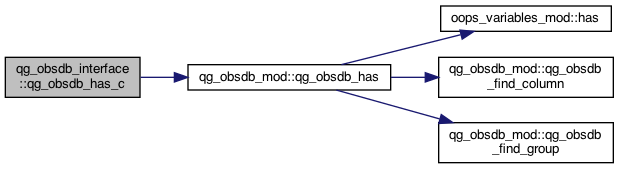

Here is the call graph for this function:

qg_obsdb_locations_c()

subroutine qg_obsdb_interface::qg_obsdb_locations_c ( integer(c_int), intent(in)  c_key_self, integer(c_int), intent(in)  lgrp, character(kind=c_char,len=1), dimension(lgrp+1), intent(in)  c_grp, type(c_ptr), intent(in), value  c_t1, type(c_ptr), intent(in), value  c_t2, type(c_ptr), intent(in), value  c_fields, type(c_ptr), intent(in), value  c_times  )

private

Get locations from observation data.

Parameters

[in]	c_key_self	Observation data
[in]	lgrp	Group size
[in]	c_grp	Group name
[in]	c_t1	Time 1
[in]	c_t2	Time 2
[in]	c_fields	Locations fieldset
[in]	c_times	times

Definition at line 201 of file qg_obsdb_interface.F90.

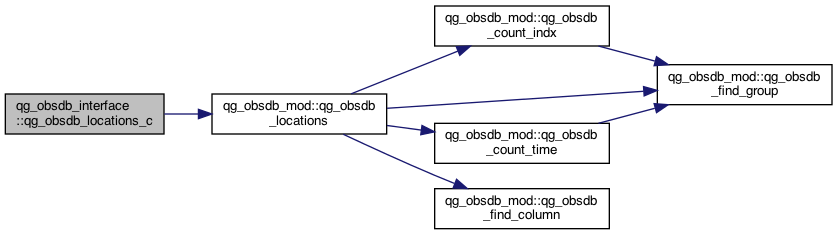

Here is the call graph for this function:

qg_obsdb_nobs_c()

subroutine qg_obsdb_interface::qg_obsdb_nobs_c ( integer(c_int), intent(in)  c_key_self, integer(c_int), intent(in)  lgrp, character(kind=c_char,len=1), dimension(lgrp+1), intent(in)  c_grp, integer(c_int), intent(inout)  kobs  )

private

Get observation data size.

Parameters

[in]	c_key_self	Observation data
[in]	lgrp	Group size
[in]	c_grp	Group name
[in,out]	kobs	Number of observations

Definition at line 269 of file qg_obsdb_interface.F90.

Here is the call graph for this function:

qg_obsdb_put_c()

subroutine qg_obsdb_interface::qg_obsdb_put_c ( integer(c_int), intent(in)  c_key_self, integer(c_int), intent(in)  lgrp, character(kind=c_char,len=1), dimension(lgrp+1), intent(in)  c_grp, integer(c_int), intent(in)  lcol, character(kind=c_char,len=1), dimension(lcol+1), intent(in)  c_col, integer(c_int), intent(in)  c_key_ovec  )

private

Put observation data.

Parameters

[in]	c_key_self	Observation data
[in]	lgrp	Group size
[in]	c_grp	Group name
[in]	lcol	Column size
[in]	c_col	Column name
[in]	c_key_ovec	Observation vector

Definition at line 143 of file qg_obsdb_interface.F90.

Here is the call graph for this function:

qg_obsdb_setup_c()

subroutine qg_obsdb_interface::qg_obsdb_setup_c ( integer(c_int), intent(inout)  c_key_self, type(c_ptr), intent(in), value  c_conf, type(c_ptr), intent(in), value  c_winbgn, type(c_ptr), intent(in), value  c_winend  )

private

Setup observation data.

Parameters

[in,out]	c_key_self	Observation data
[in]	c_conf	Configuration
[in]	c_winbgn	Start of window
[in]	c_winend	End of window

Definition at line 29 of file qg_obsdb_interface.F90.

Here is the call graph for this function:
