ObsSpace for QG model. More...

#include <ObsSpaceQG.h>

Inheritance diagram for qg::ObsSpaceQG:

[legend]

Collaboration diagram for qg::ObsSpaceQG:

[legend]

Public Member Functions
	ObsSpaceQG (const eckit::Configuration &, const eckit::mpi::Comm &, const util::DateTime &, const util::DateTime &, const eckit::mpi::Comm &)
	create full ObsSpace (read or generate data) More...

	ObsSpaceQG (const ObsSpaceQG &, const eckit::geometry::Point2 &, const eckit::Configuration &)
	create local ObsSpace More...

	~ObsSpaceQG ()

void	getdb (const std::string &, int &) const
	read data or metadata More...

void	putdb (const std::string &, const int &) const
	save data or metadata More...

bool	has (const std::string &col) const
	check if variable is in ObsSpace More...

std::unique_ptr< LocationsQG >	locations (const util::DateTime &t1, const util::DateTime &t2) const
	create locations between times (`t1`, `t2`] More...

void	printJo (const ObsVecQG &, const ObsVecQG &) const

int	nobs () const
	return number of observations (unique locations) More...

const oops::Variables &	obsvariables () const
	return variables simulated by ObsOperators More...

const std::string &	obsname () const
	observation type More...

const std::vector< int > &	localobs () const
	local observations indices More...

const F90odb &	toFortran () const
	interface with Fortran More...

Public Member Functions inherited from oops::ObsSpaceBase
	ObsSpaceBase (const eckit::Configuration &, const eckit::mpi::Comm &, const util::DateTime &, const util::DateTime &)

virtual	~ObsSpaceBase ()

const util::DateTime &	windowStart () const
	Access information. More...

const util::DateTime &	windowEnd () const

int64_t	getSeed () const

Private Member Functions
void	print (std::ostream &) const

Private Attributes
F90odb	key_

const std::string	obsname_

const util::DateTime	winbgn_

const util::DateTime	winend_

oops::Variables	obsvars_

std::vector< int >	localobs_

bool	isLocal_

const eckit::mpi::Comm &	comm_

Static Private Attributes
static std::map< std::string, F90odb >	theObsFileRegister_

static int	theObsFileCount_ = 0

Detailed Description

ObsSpace for QG model.

Definition at line 44 of file ObsSpaceQG.h.

Constructor & Destructor Documentation

◆ ObsSpaceQG() [1/2]

qg::ObsSpaceQG::ObsSpaceQG	(	const eckit::Configuration &	config,
		const eckit::mpi::Comm &	comm,
		const util::DateTime &	bgn,
		const util::DateTime &	end,
		const eckit::mpi::Comm &	timeComm
	)

create full ObsSpace (read or generate data)

Definition at line 41 of file ObsSpaceQG.cc.

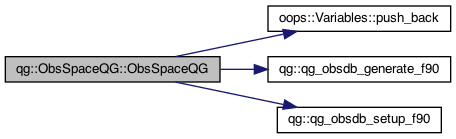

Here is the call graph for this function:

◆ ObsSpaceQG() [2/2]

qg::ObsSpaceQG::ObsSpaceQG	(	const ObsSpaceQG &	obsdb,
		const eckit::geometry::Point2 &	refPoint,
		const eckit::Configuration &	conf
	)

create local ObsSpace

Definition at line 113 of file ObsSpaceQG.cc.

Here is the call graph for this function:

◆ ~ObsSpaceQG()

qg::ObsSpaceQG::~ObsSpaceQG ( )

Definition at line 142 of file ObsSpaceQG.cc.

Here is the call graph for this function:

Member Function Documentation

◆ getdb()

void qg::ObsSpaceQG::getdb	(	const std::string &	col,
		int &	keyData
	)		const

read data or metadata

Definition at line 155 of file ObsSpaceQG.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ has()

bool qg::ObsSpaceQG::has ( const std::string & col ) const

check if variable is in ObsSpace

Definition at line 174 of file ObsSpaceQG.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ localobs()

const std::vector<int>& qg::ObsSpaceQG::localobs ( ) const

inline

local observations indices

Definition at line 78 of file ObsSpaceQG.h.

Here is the caller graph for this function:

◆ locations()

std::unique_ptr< LocationsQG > qg::ObsSpaceQG::locations	(	const util::DateTime &	t1,
		const util::DateTime &	t2
	)		const

create locations between times (t1, t2]

Definition at line 182 of file ObsSpaceQG.cc.

Here is the call graph for this function:

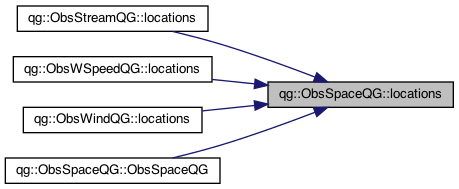

Here is the caller graph for this function:

◆ nobs()

int qg::ObsSpaceQG::nobs ( ) const

return number of observations (unique locations)

Definition at line 199 of file ObsSpaceQG.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ obsname()

const std::string& qg::ObsSpaceQG::obsname ( ) const

inline

observation type

Definition at line 75 of file ObsSpaceQG.h.

Here is the caller graph for this function:

◆ obsvariables()

const oops::Variables& qg::ObsSpaceQG::obsvariables ( ) const

inline

return variables simulated by ObsOperators

Definition at line 72 of file ObsSpaceQG.h.

Here is the caller graph for this function:

◆ print()

void qg::ObsSpaceQG::print ( std::ostream & os ) const

private

Definition at line 210 of file ObsSpaceQG.cc.

Here is the call graph for this function:

◆ printJo()

void qg::ObsSpaceQG::printJo	(	const ObsVecQG &	dy,
		const ObsVecQG &	grad
	)		const

Definition at line 193 of file ObsSpaceQG.cc.

◆ putdb()

void qg::ObsSpaceQG::putdb	(	const std::string &	col,
		const int &	keyData
	)		const

save data or metadata

Definition at line 166 of file ObsSpaceQG.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ toFortran()

const F90odb& qg::ObsSpaceQG::toFortran ( ) const

inline

interface with Fortran

Definition at line 81 of file ObsSpaceQG.h.

Member Data Documentation

◆ comm_

const eckit::mpi::Comm& qg::ObsSpaceQG::comm_

private

Definition at line 93 of file ObsSpaceQG.h.

◆ isLocal_

bool qg::ObsSpaceQG::isLocal_

private

Definition at line 92 of file ObsSpaceQG.h.

◆ key_

F90odb qg::ObsSpaceQG::key_

private

Definition at line 86 of file ObsSpaceQG.h.

◆ localobs_

std::vector<int> qg::ObsSpaceQG::localobs_

private

Definition at line 91 of file ObsSpaceQG.h.

◆ obsname_

const std::string qg::ObsSpaceQG::obsname_

private

Definition at line 87 of file ObsSpaceQG.h.

◆ obsvars_

oops::Variables qg::ObsSpaceQG::obsvars_

private

Definition at line 90 of file ObsSpaceQG.h.

◆ theObsFileCount_

int qg::ObsSpaceQG::theObsFileCount_ = 0

staticprivate

Definition at line 97 of file ObsSpaceQG.h.

◆ theObsFileRegister_

std::map< std::string, F90odb > qg::ObsSpaceQG::theObsFileRegister_

staticprivate

Definition at line 96 of file ObsSpaceQG.h.

◆ winbgn_

const util::DateTime qg::ObsSpaceQG::winbgn_

private

Definition at line 88 of file ObsSpaceQG.h.

◆ winend_

const util::DateTime qg::ObsSpaceQG::winend_

private

Definition at line 89 of file ObsSpaceQG.h.

The documentation for this class was generated from the following files:
