Interface class for the geometry of the model/state space. More...
#include <Geometry.h>
Public Types | |
| typedef TParameters_IfAvailableElseFallbackType_t< Geometry_, GenericParameters > | Parameters_ |
Public Member Functions | |
| Geometry (const Parameters_ &, const eckit::mpi::Comm &) | |
| Constructors from yaml (and mpi communicator), implement one (using Parameters preferred) More... | |
| Geometry (const eckit::Configuration &, const eckit::mpi::Comm &) | |
| Geometry (std::shared_ptr< const Geometry_ >) | |
| Constructor from pointer to the MODEL::Geometry (used in 1DVar filter) More... | |
| virtual | ~Geometry () |
| Destructor (overridden for timer and log purposes) More... | |
| GeometryIterator_ | begin () const |
| Iterator to the first gridpoint of Geometry (only used in LocalEnsembleDA) More... | |
| GeometryIterator_ | end () const |
| Iterator to the last gridpoint fo Geometry (only used in LocalEnsembleDA) More... | |
| std::vector< double > | verticalCoord (std::string &) const |
| Values of vertical coordinate in units specified by string (only used in GETKF) More... | |
| const eckit::mpi::Comm & | getComm () const |
| Accessor to the geometry communicator. More... | |
| atlas::FunctionSpace * | atlasFunctionSpace () const |
| atlas::FieldSet * | atlasFieldSet () const |
Static Public Member Functions | |
| static const std::string | classname () |
Protected Attributes | |
| std::shared_ptr< const Geometry_ > | geom_ |
Private Types | |
| typedef MODEL::Geometry | Geometry_ |
| typedef GeometryIterator< MODEL > | GeometryIterator_ |
Private Member Functions | |
| void | print (std::ostream &) const |
| pointer to the Geometry implementation More... | |
Detailed Description
template<typename MODEL>
class oops::interface::Geometry< MODEL >
Interface class for the geometry of the model/state space.
Can contain information about model resolution, gridpoints, MPI distribution
Note: implementations of this interface can opt to extract their settings either from a Configuration object or from a subclass of Parameters.
In the former case, they should provide a constructor with the following signature:
Geometry(const eckit::LocalConfiguration &, const eckit::mpi::Comm &);
In the latter case, the implementer should first define a subclass of Parameters holding the settings of the geometry in question. The implementation of the Geometry interface should then typedef Parameters_ to the name of that subclass and provide a constructor with the following signature:
Geometry(const Parameters_ &, const eckit::mpi::Comm &);
Definition at line 59 of file oops/interface/Geometry.h.
Member Typedef Documentation
◆ Geometry_
|
private |
Definition at line 61 of file oops/interface/Geometry.h.
◆ GeometryIterator_
|
private |
Definition at line 62 of file oops/interface/Geometry.h.
◆ Parameters_
| typedef TParameters_IfAvailableElseFallbackType_t<Geometry_, GenericParameters> oops::interface::Geometry< MODEL >::Parameters_ |
Set to Geometry_::Parameters_ if Geometry_ provides a type called Parameters_ and to GenericParameters (a thin wrapper of an eckit::LocalConfiguration object) if not.
Definition at line 67 of file oops/interface/Geometry.h.
Constructor & Destructor Documentation
◆ Geometry() [1/3]
| oops::interface::Geometry< MODEL >::Geometry | ( | const Parameters_ & | parameters, |
| const eckit::mpi::Comm & | comm | ||
| ) |
Constructors from yaml (and mpi communicator), implement one (using Parameters preferred)
Definition at line 109 of file oops/interface/Geometry.h.
◆ Geometry() [2/3]
| oops::interface::Geometry< MODEL >::Geometry | ( | const eckit::Configuration & | config, |
| const eckit::mpi::Comm & | comm | ||
| ) |
Definition at line 101 of file oops/interface/Geometry.h.
◆ Geometry() [3/3]
|
explicit |
Constructor from pointer to the MODEL::Geometry (used in 1DVar filter)
Definition at line 122 of file oops/interface/Geometry.h.
◆ ~Geometry()
|
virtual |
Destructor (overridden for timer and log purposes)
Definition at line 131 of file oops/interface/Geometry.h.
Member Function Documentation
◆ atlasFieldSet()
|
inline |
Definition at line 89 of file oops/interface/Geometry.h.
◆ atlasFunctionSpace()
|
inline |
Definition at line 88 of file oops/interface/Geometry.h.

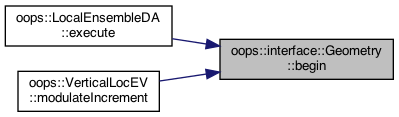

◆ begin()
| GeometryIterator< MODEL > oops::interface::Geometry< MODEL >::begin |
Iterator to the first gridpoint of Geometry (only used in LocalEnsembleDA)
Definition at line 141 of file oops/interface/Geometry.h.
◆ classname()
|
inlinestatic |
Definition at line 69 of file oops/interface/Geometry.h.

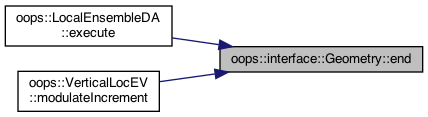

◆ end()
| GeometryIterator< MODEL > oops::interface::Geometry< MODEL >::end |
Iterator to the last gridpoint fo Geometry (only used in LocalEnsembleDA)
Definition at line 161 of file oops/interface/Geometry.h.
◆ getComm()
|
inline |
Accessor to the geometry communicator.
Definition at line 87 of file oops/interface/Geometry.h.
◆ print()
|
private |
pointer to the Geometry implementation
Definition at line 171 of file oops/interface/Geometry.h.
◆ verticalCoord()
| std::vector< double > oops::interface::Geometry< MODEL >::verticalCoord | ( | std::string & | str | ) | const |
Values of vertical coordinate in units specified by string (only used in GETKF)
Definition at line 151 of file oops/interface/Geometry.h.
Member Data Documentation
◆ geom_
|
protected |
Definition at line 92 of file oops/interface/Geometry.h.
The documentation for this class was generated from the following file:
