oops::VariableChangeBase< MODEL > Class Template Reference

#include <VariableChangeBase.h>

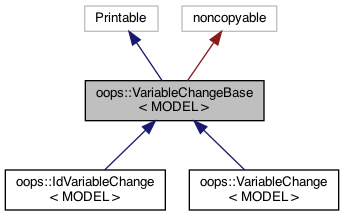

Inheritance diagram for oops::VariableChangeBase< MODEL >:

Collaboration diagram for oops::VariableChangeBase< MODEL >:

Public Member Functions
	VariableChangeBase (const VariableChangeParametersBase &)
	VariableChangeBase (const eckit::Configuration &)
virtual	~VariableChangeBase ()
void	setInputVariables (const Variables &vars)
void	setOutputVariables (const Variables &vars)
virtual void	changeVar (const State_ &, State_ &) const =0
virtual void	changeVarInverse (const State_ &, State_ &) const =0
State_	changeVar (const State_ &) const
State_	changeVarInverse (const State_ &) const

Private Types
typedef State< MODEL >	State_

Private Member Functions
virtual void	print (std::ostream &) const =0

Private Attributes
std::unique_ptr< Variables >	varin_
std::unique_ptr< Variables >	varout_

Detailed Description

template<typename MODEL>
class oops::VariableChangeBase< MODEL >

Base class for generic variable transform

Note: subclasses can opt to extract their settings either from a Configuration object or from a subclass of Parameters.

In the former case, they should provide a constructor taking a const reference to an eckit::Configuration object. In the latter case, the implementer should first define a subclass of Parameters holding the settings of the variable change in question. The latter should then typedef Parameters_ to the name of that subclass and provide a constructor taking a const reference to an instance of that subclass.

Definition at line 48 of file VariableChangeBase.h.

Member Typedef Documentation

State_

template<typename MODEL >

typedef State<MODEL> oops::VariableChangeBase< MODEL >::State_

private

Definition at line 50 of file VariableChangeBase.h.

Constructor & Destructor Documentation

VariableChangeBase() [1/2]

template<typename MODEL >

oops::VariableChangeBase< MODEL >::VariableChangeBase ( const VariableChangeParametersBase &  params )

explicit

Definition at line 242 of file VariableChangeBase.h.

VariableChangeBase() [2/2]

template<typename MODEL >

oops::VariableChangeBase< MODEL >::VariableChangeBase ( const eckit::Configuration &  conf )

explicit

Definition at line 260 of file VariableChangeBase.h.

~VariableChangeBase()

template<typename MODEL >

virtual oops::VariableChangeBase< MODEL >::~VariableChangeBase ( )

inlinevirtual

Definition at line 55 of file VariableChangeBase.h.

Member Function Documentation

changeVar() [1/2]

template<typename MODEL >

State< MODEL > oops::VariableChangeBase< MODEL >::changeVar

(

const State_ &

xin

)

const

Definition at line 267 of file VariableChangeBase.h.

Here is the call graph for this function:

changeVar() [2/2]

template<typename MODEL >

virtual void oops::VariableChangeBase< MODEL >::changeVar ( const State_ &  , State_ &    ) const

pure virtual

Implemented in oops::IdVariableChange< MODEL >, and oops::VariableChange< MODEL, CHVAR >.

changeVarInverse() [1/2]

template<typename MODEL >

State< MODEL > oops::VariableChangeBase< MODEL >::changeVarInverse

(

const State_ &

xin

)

const

Definition at line 279 of file VariableChangeBase.h.

Here is the call graph for this function:

changeVarInverse() [2/2]

template<typename MODEL >

virtual void oops::VariableChangeBase< MODEL >::changeVarInverse ( const State_ &  , State_ &    ) const

pure virtual

Implemented in oops::IdVariableChange< MODEL >, and oops::VariableChange< MODEL, CHVAR >.

print()

template<typename MODEL >

virtual void oops::VariableChangeBase< MODEL >::print ( std::ostream &  ) const

privatepure virtual

Implemented in oops::IdVariableChange< MODEL >, and oops::VariableChange< MODEL, CHVAR >.

setInputVariables()

template<typename MODEL >

void oops::VariableChangeBase< MODEL >::setInputVariables ( const Variables &  vars )

inline

Definition at line 57 of file VariableChangeBase.h.

setOutputVariables()

template<typename MODEL >

void oops::VariableChangeBase< MODEL >::setOutputVariables ( const Variables &  vars )

inline

Definition at line 58 of file VariableChangeBase.h.

Member Data Documentation

varin_

template<typename MODEL >

std::unique_ptr<Variables> oops::VariableChangeBase< MODEL >::varin_

private

Definition at line 68 of file VariableChangeBase.h.

varout_

template<typename MODEL >

std::unique_ptr<Variables> oops::VariableChangeBase< MODEL >::varout_

private

Definition at line 69 of file VariableChangeBase.h.

---

The documentation for this class was generated from the following file:

• VariableChangeBase.h
