Encapsulates the nonlinear forecast model Note: to see methods that need to be implemented in the forecast model implementation, see ModelBase class. More...

#include <Model.h>

Inheritance diagram for oops::Model< MODEL >:

[legend]

Collaboration diagram for oops::Model< MODEL >:

[legend]

Public Member Functions
	Model (const Geometry_ &, const ModelParametersBase &)

	Model (const Geometry_ &, const eckit::Configuration &)

virtual	~Model ()

void	forecast (State_ &xx, const ModelAux_ &, const util::Duration &len, PostProcessor< State_ > &post) const
	Run the forecast from state `xx` for `len` time, with `post` postprocessors Does not need to be implemented in the models. More...

const util::Duration &	timeResolution () const
	Time step for running Model's forecast in oops (frequency with which the State will be updated) More...

const oops::Variables &	variables () const
	Model variables (only used in 4DVar) More...

Static Public Member Functions
static const std::string	classname ()

Private Types
typedef ModelBase< MODEL >	ModelBase_

typedef Geometry< MODEL >	Geometry_

typedef ModelAuxControl< MODEL >	ModelAux_

typedef State< MODEL >	State_

Private Member Functions
void	initialize (State_ &) const
	Forecast initialization, called before every forecast run. More...

void	step (State_ &, const ModelAux_ &) const
	Forecast "step", called during forecast run; updates state to the next time. More...

void	finalize (State_ &) const
	Forecast finalization; called after each forecast run. More...

void	print (std::ostream &) const
	Print, used in logging. More...

Private Attributes
std::unique_ptr< ModelBase_ >	model_
	Pointer to the Model implementation. More...

Detailed Description

template<typename MODEL>
class oops::Model< MODEL >

Encapsulates the nonlinear forecast model Note: to see methods that need to be implemented in the forecast model implementation, see ModelBase class.

Note: implementations of this interface can opt to extract their settings either from a Configuration object or from a subclass of ModelParametersBase.

In the former case, they should provide a constructor with the following signature:

Model(const Geometry_ &, const eckit::Configuration &);

In the latter case, the implementer should first define a subclass of ModelParametersBase holding the settings of the model in question. The implementation of the Model interface should then typedef Parameters_ to the name of that subclass and provide a constructor with the following signature:

Model(const Geometry_ &, const Parameters_ &);

Definition at line 52 of file oops/interface/Model.h.

Member Typedef Documentation

◆ Geometry_

template<typename MODEL >

typedef Geometry<MODEL> oops::Model< MODEL >::Geometry_

private

Definition at line 56 of file oops/interface/Model.h.

◆ ModelAux_

template<typename MODEL >

typedef ModelAuxControl<MODEL> oops::Model< MODEL >::ModelAux_

private

Definition at line 57 of file oops/interface/Model.h.

◆ ModelBase_

template<typename MODEL >

typedef ModelBase<MODEL> oops::Model< MODEL >::ModelBase_

private

Definition at line 55 of file oops/interface/Model.h.

◆ State_

template<typename MODEL >

typedef State<MODEL> oops::Model< MODEL >::State_

private

Definition at line 58 of file oops/interface/Model.h.

Constructor & Destructor Documentation

◆ Model() [1/2]

template<typename MODEL >

oops::Model< MODEL >::Model	(	const Geometry_ &	resol,
		const ModelParametersBase &	params
	)

Definition at line 95 of file oops/interface/Model.h.

Here is the call graph for this function:

◆ Model() [2/2]

template<typename MODEL >

oops::Model< MODEL >::Model	(	const Geometry_ &	resol,
		const eckit::Configuration &	conf
	)

Definition at line 108 of file oops/interface/Model.h.

◆ ~Model()

template<typename MODEL >

oops::Model< MODEL >::~Model

virtual

Definition at line 115 of file oops/interface/Model.h.

Member Function Documentation

◆ classname()

template<typename MODEL >

static const std::string oops::Model< MODEL >::classname ( )

inlinestatic

Definition at line 61 of file oops/interface/Model.h.

Here is the caller graph for this function:

◆ finalize()

template<typename MODEL >

void oops::Model< MODEL >::finalize ( State_ & xx ) const

private

Forecast finalization; called after each forecast run.

Definition at line 170 of file oops/interface/Model.h.

Here is the call graph for this function:

◆ forecast()

template<typename MODEL >

void oops::Model< MODEL >::forecast	(	State_ &	xx,
		const ModelAux_ &	maux,
		const util::Duration &	len,
		PostProcessor< State_ > &	post
	)		const

Run the forecast from state xx for len time, with post postprocessors Does not need to be implemented in the models.

Definition at line 125 of file oops/interface/Model.h.

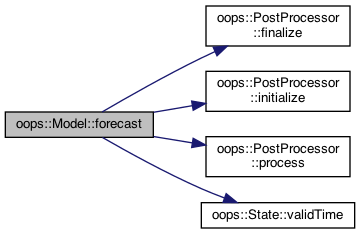

Here is the call graph for this function:

◆ initialize()

template<typename MODEL >

void oops::Model< MODEL >::initialize ( State_ & xx ) const

private

Forecast initialization, called before every forecast run.

Definition at line 150 of file oops/interface/Model.h.

Here is the call graph for this function:

◆ print()

template<typename MODEL >

void oops::Model< MODEL >::print ( std::ostream & os ) const

private

Print, used in logging.

Definition at line 180 of file oops/interface/Model.h.

◆ step()

template<typename MODEL >

void oops::Model< MODEL >::step	(	State_ &	xx,
		const ModelAux_ &	maux
	)		const

private

Forecast "step", called during forecast run; updates state to the next time.

Definition at line 160 of file oops/interface/Model.h.

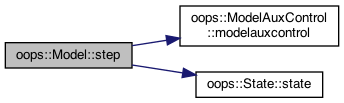

Here is the call graph for this function:

◆ timeResolution()

template<typename MODEL >

const util::Duration& oops::Model< MODEL >::timeResolution ( ) const

inline

Time step for running Model's forecast in oops (frequency with which the State will be updated)

Definition at line 74 of file oops/interface/Model.h.

◆ variables()

template<typename MODEL >

const oops::Variables& oops::Model< MODEL >::variables ( ) const

inline

Model variables (only used in 4DVar)

Definition at line 76 of file oops/interface/Model.h.

Member Data Documentation

◆ model_

template<typename MODEL >

std::unique_ptr<ModelBase_> oops::Model< MODEL >::model_

private

Pointer to the Model implementation.

Definition at line 89 of file oops/interface/Model.h.

The documentation for this class was generated from the following file:

oops/interface/Model.h
