Jo Cost Function. More...

#include <CostJo.h>

Inheritance diagram for oops::CostJo< MODEL, OBS >:

Collaboration diagram for oops::CostJo< MODEL, OBS >:

Public Member Functions
	CostJo (const eckit::Configuration &, const eckit::mpi::Comm &, const util::DateTime &, const util::DateTime &, const eckit::mpi::Comm &ctime=oops::mpi::myself())
	Construct \( J_o\) from \( R\) and \( y_{obs}\). More...

	CostJo (const eckit::Configuration &, const util::DateTime &, const util::DateTime &, const ObsSpaces_ &)
	Constructor added for generic 1d-var under development in ufo. More...

virtual	~CostJo ()
	Destructor. More...

std::shared_ptr< PostBase< State_ > >	initialize (const CtrlVar_ &, const eckit::Configuration &) override
	Initialize \( J_o\) before starting the integration of the model. More...

std::shared_ptr< PostBaseTLAD_ >	initializeTraj (const CtrlVar_ &, const Geometry_ &, const eckit::Configuration &) override

double	finalize () override
	Finalize \( J_o\) after the integration of the model. More...

void	finalizeTraj () override

std::shared_ptr< PostBaseTLAD_ >	setupTL (const CtrlInc_ &) const override
	Initialize \( J_o\) before starting the TL run. More...

std::shared_ptr< PostBaseTLAD_ >	setupAD (std::shared_ptr< const GeneralizedDepartures >, CtrlInc_ &) const override
	Initialize \( J_o\) before starting the AD run. More...

std::unique_ptr< GeneralizedDepartures >	multiplyCovar (const GeneralizedDepartures &) const override
	Multiply by \( R\) and \( R^{-1}\). More...

std::unique_ptr< GeneralizedDepartures >	multiplyCoInv (const GeneralizedDepartures &) const override

std::unique_ptr< GeneralizedDepartures >	newDualVector () const override
	Provide new departure. More...

std::unique_ptr< GeneralizedDepartures >	newGradientFG () const override
	Return gradient at first guess ie \( R^{-1} {\cal H}(x^t ) - y\). More...

void	resetLinearization () override
	Reset obs operator trajectory. More...

double	printJo (const Departures_ &, const Departures_ &) const
	Print Jo. More...

const ObsSpaces_ &	obspaces () const

Public Member Functions inherited from oops::CostTermBase< MODEL, OBS >
virtual	~CostTermBase ()
	Destructor. More...

Private Types
typedef ControlVariable< MODEL, OBS >	CtrlVar_

typedef ControlIncrement< MODEL, OBS >	CtrlInc_

typedef Departures< OBS >	Departures_

typedef Observations< OBS >	Observations_

typedef Geometry< MODEL >	Geometry_

typedef State< MODEL >	State_

typedef Increment< MODEL >	Increment_

typedef ObsErrors< OBS >	ObsErrors_

typedef ObsSpaces< OBS >	ObsSpaces_

typedef Observers< MODEL, OBS >	Observers_

typedef ObserversTLAD< MODEL, OBS >	ObserversTLAD_

typedef PostBaseTLAD< MODEL >	PostBaseTLAD_

typedef QCData< OBS >	QCData_

Private Attributes
eckit::LocalConfiguration	obsconf_

ObsSpaces_	obspace_

Observations_	yobs_

std::unique_ptr< ObsErrors_ >	Rmat_

std::unique_ptr< eckit::LocalConfiguration >	currentConf_
	Configuration for current initialize/finalize pair. More...

std::unique_ptr< Departures_ >	gradFG_
	Gradient at first guess : \( R^{-1} (H(x_{fg})-y_{obs}) \). More...

std::shared_ptr< Observers_ >	pobs_
	Observers passed by \( J_o\) to the model during integration. More...

std::shared_ptr< ObserversTLAD_ >	pobstlad_
	Linearized observation operators. More...

QCData_	qc_
	Storage for QC flags and obs error. More...

Detailed Description

template<typename MODEL, typename OBS>
class oops::CostJo< MODEL, OBS >

Jo Cost Function.

The CostJo class encapsulates the Jo term of the cost function. The Observers to be called during the model integration is managed inside the CostJo class.

Definition at line 53 of file CostJo.h.

Member Typedef Documentation

◆ CtrlInc_

template<typename MODEL , typename OBS >

typedef ControlIncrement<MODEL, OBS> oops::CostJo< MODEL, OBS >::CtrlInc_

private

Definition at line 56 of file CostJo.h.

◆ CtrlVar_

template<typename MODEL , typename OBS >

typedef ControlVariable<MODEL, OBS> oops::CostJo< MODEL, OBS >::CtrlVar_

private

Definition at line 55 of file CostJo.h.

◆ Departures_

template<typename MODEL , typename OBS >

typedef Departures<OBS> oops::CostJo< MODEL, OBS >::Departures_

private

Definition at line 57 of file CostJo.h.

◆ Geometry_

template<typename MODEL , typename OBS >

typedef Geometry<MODEL> oops::CostJo< MODEL, OBS >::Geometry_

private

Definition at line 59 of file CostJo.h.

◆ Increment_

template<typename MODEL , typename OBS >

typedef Increment<MODEL> oops::CostJo< MODEL, OBS >::Increment_

private

Definition at line 61 of file CostJo.h.

◆ ObsErrors_

template<typename MODEL , typename OBS >

typedef ObsErrors<OBS> oops::CostJo< MODEL, OBS >::ObsErrors_

private

Definition at line 62 of file CostJo.h.

◆ Observations_

template<typename MODEL , typename OBS >

typedef Observations<OBS> oops::CostJo< MODEL, OBS >::Observations_

private

Definition at line 58 of file CostJo.h.

◆ Observers_

template<typename MODEL , typename OBS >

typedef Observers<MODEL, OBS> oops::CostJo< MODEL, OBS >::Observers_

private

Definition at line 64 of file CostJo.h.

◆ ObserversTLAD_

template<typename MODEL , typename OBS >

typedef ObserversTLAD<MODEL, OBS> oops::CostJo< MODEL, OBS >::ObserversTLAD_

private

Definition at line 65 of file CostJo.h.

◆ ObsSpaces_

template<typename MODEL , typename OBS >

typedef ObsSpaces<OBS> oops::CostJo< MODEL, OBS >::ObsSpaces_

private

Definition at line 63 of file CostJo.h.

◆ PostBaseTLAD_

template<typename MODEL , typename OBS >

typedef PostBaseTLAD<MODEL> oops::CostJo< MODEL, OBS >::PostBaseTLAD_

private

Definition at line 66 of file CostJo.h.

◆ QCData_

template<typename MODEL , typename OBS >

typedef QCData<OBS> oops::CostJo< MODEL, OBS >::QCData_

private

Definition at line 67 of file CostJo.h.

◆ State_

template<typename MODEL , typename OBS >

typedef State<MODEL> oops::CostJo< MODEL, OBS >::State_

private

Definition at line 60 of file CostJo.h.

Constructor & Destructor Documentation

◆ CostJo() [1/2]

template<typename MODEL , typename OBS >

oops::CostJo< MODEL, OBS >::CostJo	(	const eckit::Configuration &	joConf,
		const eckit::mpi::Comm &	comm,
		const util::DateTime &	winbgn,
		const util::DateTime &	winend,
		const eckit::mpi::Comm &	ctime = `oops::mpi::myself()`
	)

Construct \( J_o\) from \( R\) and \( y_{obs}\).

Definition at line 143 of file CostJo.h.

◆ CostJo() [2/2]

template<typename MODEL , typename OBS >

oops::CostJo< MODEL, OBS >::CostJo	(	const eckit::Configuration &	joConf,
		const util::DateTime &	winbgn,
		const util::DateTime &	winend,
		const ObsSpaces_ &	localobs
	)

Constructor added for generic 1d-var under development in ufo.

Definition at line 157 of file CostJo.h.

◆ ~CostJo()

template<typename MODEL , typename OBS >

virtual oops::CostJo< MODEL, OBS >::~CostJo ( )

inlinevirtual

Destructor.

Definition at line 80 of file CostJo.h.

Member Function Documentation

◆ finalize()

template<typename MODEL , typename OBS >

double oops::CostJo< MODEL, OBS >::finalize

overridevirtual

Finalize \( J_o\) after the integration of the model.

Implements oops::CostTermBase< MODEL, OBS >.

Definition at line 186 of file CostJo.h.

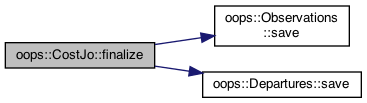

Here is the call graph for this function:

◆ finalizeTraj()

template<typename MODEL , typename OBS >

void oops::CostJo< MODEL, OBS >::finalizeTraj

overridevirtual

Implements oops::CostTermBase< MODEL, OBS >.

Definition at line 261 of file CostJo.h.

◆ initialize()

template<typename MODEL , typename OBS >

std::shared_ptr< PostBase< State< MODEL > > > oops::CostJo< MODEL, OBS >::initialize	(	const CtrlVar_ &	xx,
		const eckit::Configuration &	conf
	)

overridevirtual

Initialize \( J_o\) before starting the integration of the model.

Implements oops::CostTermBase< MODEL, OBS >.

Definition at line 172 of file CostJo.h.

Here is the call graph for this function:

◆ initializeTraj()

template<typename MODEL , typename OBS >

std::shared_ptr< PostBaseTLAD< MODEL > > oops::CostJo< MODEL, OBS >::initializeTraj	(	const CtrlVar_ &	xx,
		const Geometry_ &	,
		const eckit::Configuration &	conf
	)

overridevirtual

Implements oops::CostTermBase< MODEL, OBS >.

Definition at line 250 of file CostJo.h.

Here is the call graph for this function:

◆ multiplyCoInv()

template<typename MODEL , typename OBS >

std::unique_ptr< GeneralizedDepartures > oops::CostJo< MODEL, OBS >::multiplyCoInv ( const GeneralizedDepartures & v1 ) const

overridevirtual

Implements oops::CostTermBase< MODEL, OBS >.

Definition at line 305 of file CostJo.h.

◆ multiplyCovar()

template<typename MODEL , typename OBS >

std::unique_ptr< GeneralizedDepartures > oops::CostJo< MODEL, OBS >::multiplyCovar ( const GeneralizedDepartures & v1 ) const

overridevirtual

Multiply by \( R\) and \( R^{-1}\).

Implements oops::CostTermBase< MODEL, OBS >.

Definition at line 294 of file CostJo.h.

◆ newDualVector()

template<typename MODEL , typename OBS >

std::unique_ptr< GeneralizedDepartures > oops::CostJo< MODEL, OBS >::newDualVector

overridevirtual

Provide new departure.

Implements oops::CostTermBase< MODEL, OBS >.

Definition at line 315 of file CostJo.h.

◆ newGradientFG()

template<typename MODEL , typename OBS >

std::unique_ptr< GeneralizedDepartures > oops::CostJo< MODEL, OBS >::newGradientFG

overridevirtual

Return gradient at first guess ie \( R^{-1} {\cal H}(x^t ) - y\).

Implements oops::CostTermBase< MODEL, OBS >.

Definition at line 326 of file CostJo.h.

◆ obspaces()

template<typename MODEL , typename OBS >

const ObsSpaces_& oops::CostJo< MODEL, OBS >::obspaces ( ) const

inline

Definition at line 116 of file CostJo.h.

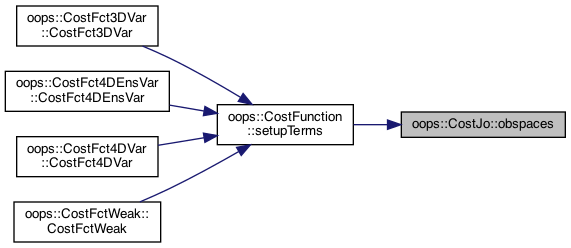

Here is the caller graph for this function:

◆ printJo()

template<typename MODEL , typename OBS >

double oops::CostJo< MODEL, OBS >::printJo	(	const Departures_ &	dy,
		const Departures_ &	grad
	)		const

Print Jo.

Definition at line 342 of file CostJo.h.

Here is the call graph for this function:

◆ resetLinearization()

template<typename MODEL , typename OBS >

void oops::CostJo< MODEL, OBS >::resetLinearization

overridevirtual

Reset obs operator trajectory.

Implements oops::CostTermBase< MODEL, OBS >.

Definition at line 333 of file CostJo.h.

◆ setupAD()

template<typename MODEL , typename OBS >

std::shared_ptr< PostBaseTLAD< MODEL > > oops::CostJo< MODEL, OBS >::setupAD	(	std::shared_ptr< const GeneralizedDepartures >	pv,
		CtrlInc_ &	dx
	)		const

overridevirtual

Initialize \( J_o\) before starting the AD run.

Implements oops::CostTermBase< MODEL, OBS >.

Definition at line 279 of file CostJo.h.

Here is the call graph for this function:

◆ setupTL()

template<typename MODEL , typename OBS >

std::shared_ptr< PostBaseTLAD< MODEL > > oops::CostJo< MODEL, OBS >::setupTL ( const CtrlInc_ & dx ) const

overridevirtual

Initialize \( J_o\) before starting the TL run.

Implements oops::CostTermBase< MODEL, OBS >.

Definition at line 268 of file CostJo.h.

Here is the call graph for this function:

Member Data Documentation

◆ currentConf_

template<typename MODEL , typename OBS >

std::unique_ptr<eckit::LocalConfiguration> oops::CostJo< MODEL, OBS >::currentConf_

private

Configuration for current initialize/finalize pair.

Definition at line 125 of file CostJo.h.

◆ gradFG_

template<typename MODEL , typename OBS >

std::unique_ptr<Departures_> oops::CostJo< MODEL, OBS >::gradFG_

private

Gradient at first guess : \( R^{-1} (H(x_{fg})-y_{obs}) \).

Definition at line 128 of file CostJo.h.

◆ obsconf_

template<typename MODEL , typename OBS >

eckit::LocalConfiguration oops::CostJo< MODEL, OBS >::obsconf_

private

Definition at line 119 of file CostJo.h.

◆ obspace_

template<typename MODEL , typename OBS >

ObsSpaces_ oops::CostJo< MODEL, OBS >::obspace_

private

Definition at line 120 of file CostJo.h.

◆ pobs_

template<typename MODEL , typename OBS >

std::shared_ptr<Observers_> oops::CostJo< MODEL, OBS >::pobs_

mutableprivate

Observers passed by \( J_o\) to the model during integration.

Definition at line 131 of file CostJo.h.

◆ pobstlad_

template<typename MODEL , typename OBS >

std::shared_ptr<ObserversTLAD_> oops::CostJo< MODEL, OBS >::pobstlad_

private

Linearized observation operators.

Definition at line 134 of file CostJo.h.

◆ qc_

template<typename MODEL , typename OBS >

QCData_ oops::CostJo< MODEL, OBS >::qc_

private

Storage for QC flags and obs error.

Definition at line 137 of file CostJo.h.

◆ Rmat_

template<typename MODEL , typename OBS >

std::unique_ptr<ObsErrors_> oops::CostJo< MODEL, OBS >::Rmat_

private

Definition at line 122 of file CostJo.h.

◆ yobs_

template<typename MODEL , typename OBS >

Observations_ oops::CostJo< MODEL, OBS >::yobs_

private

Definition at line 121 of file CostJo.h.

The documentation for this class was generated from the following file:

CostJo.h

Public Member Functions

Private Types

Private Attributes

Detailed Description

template<typename MODEL, typename OBS> class oops::CostJo< MODEL, OBS >

Member Typedef Documentation

◆ CtrlInc_

◆ CtrlVar_

◆ Departures_

◆ Geometry_

◆ Increment_

◆ ObsErrors_

◆ Observations_

◆ Observers_

◆ ObserversTLAD_

◆ ObsSpaces_

◆ PostBaseTLAD_

◆ QCData_

◆ State_

Constructor & Destructor Documentation

◆ CostJo() [1/2]

◆ CostJo() [2/2]

◆ ~CostJo()

Member Function Documentation

◆ finalize()

◆ finalizeTraj()

◆ initialize()

◆ initializeTraj()

◆ multiplyCoInv()

◆ multiplyCovar()

◆ newDualVector()

◆ newGradientFG()

◆ obspaces()

◆ printJo()

◆ resetLinearization()

◆ setupAD()

◆ setupTL()

Member Data Documentation

◆ currentConf_

◆ gradFG_

◆ obsconf_

◆ obspace_

◆ pobs_

◆ pobstlad_

◆ qc_

◆ Rmat_

◆ yobs_

template<typename MODEL, typename OBS>
class oops::CostJo< MODEL, OBS >
