fv3jedi_linvarcha_c2a_mod Module Reference

Data Types
type	fv3jedi_linvarcha_c2a
	Fortran derived type to hold configuration data for the B mat variable change. More...

Functions/Subroutines
subroutine, public	create (self, geom, bg, fg, conf)
subroutine, public	delete (self)
subroutine, public	multiply (self, geom, dxc, dxa)
subroutine, public	multiplyadjoint (self, geom, dxa, dxc)
subroutine, public	multiplyinverse (self, geom, dxa, dxc)
subroutine, public	multiplyinverseadjoint (self, geom, dxc, dxa)
subroutine	control_to_analysis_tlm (geom, psi, chi, tv, rh, ua, va, t, q, tvt, qt, qsat)
subroutine	control_to_analysis_adm (geom, psi, chi, tv, rh, ua, va, t, q, tvt, qt, qsat)
	Control variables to state variables - Adjoint. More...

Function/Subroutine Documentation

control_to_analysis_adm()

subroutine fv3jedi_linvarcha_c2a_mod::control_to_analysis_adm ( type(fv3jedi_geom), intent(inout)  geom, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(inout)  psi, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(inout)  chi, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(inout)  tv, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(inout)  rh, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(inout)  ua, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(inout)  va, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(inout)  t, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(inout)  q, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(in)  tvt, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(in)  qt, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(in)  qsat  )

private

Control variables to state variables - Adjoint.

Definition at line 463 of file fv3jedi_linvarcha_c2a_mod.f90.

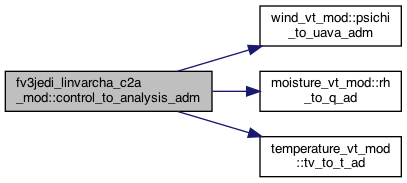

Here is the call graph for this function:

control_to_analysis_tlm()

subroutine fv3jedi_linvarcha_c2a_mod::control_to_analysis_tlm ( type(fv3jedi_geom), intent(inout)  geom, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(in)  psi, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(in)  chi, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(in)  tv, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(in)  rh, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(inout)  ua, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(inout)  va, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(inout)  t, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(inout)  q, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(in)  tvt, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(in)  qt, real(kind=kind_real), dimension(geom%isc:geom%iec,geom%jsc:geom%jec,1:geom%npz), intent(in)  qsat  )

private

Definition at line 404 of file fv3jedi_linvarcha_c2a_mod.f90.

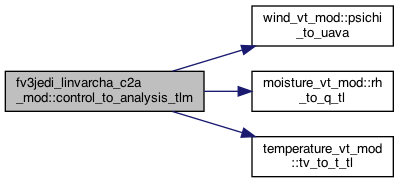

Here is the call graph for this function:

create()

subroutine, public fv3jedi_linvarcha_c2a_mod::create	(	type(fv3jedi_linvarcha_c2a), intent(inout)	self,
		type(fv3jedi_geom), intent(in), target	geom,
		type(fv3jedi_state), intent(in), target	bg,
		type(fv3jedi_state), intent(in), target	fg,
		type(fckit_configuration), intent(in)	conf
	)

Pointers to the background state

Virtual temperature trajectory

Temperature trajectory

Specific humidity trajecotory

Compute saturation specific humidity for q to RH transform

Compute saturation specific humidity

Definition at line 49 of file fv3jedi_linvarcha_c2a_mod.f90.

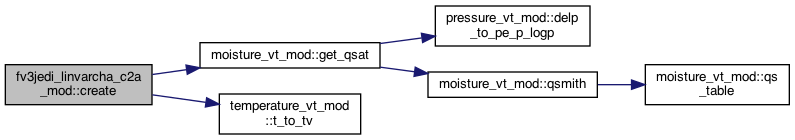

Here is the call graph for this function:

Here is the caller graph for this function:

delete()

subroutine, public fv3jedi_linvarcha_c2a_mod::delete

(

type(fv3jedi_linvarcha_c2a), intent(inout)

self

)

Definition at line 89 of file fv3jedi_linvarcha_c2a_mod.f90.

Here is the caller graph for this function:

multiply()

subroutine, public fv3jedi_linvarcha_c2a_mod::multiply	(	type(fv3jedi_linvarcha_c2a), intent(in)	self,
		type(fv3jedi_geom), intent(inout)	geom,
		type(fv3jedi_increment), intent(in)	dxc,
		type(fv3jedi_increment), intent(inout)	dxa
	)

Definition at line 103 of file fv3jedi_linvarcha_c2a_mod.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

multiplyadjoint()

subroutine, public fv3jedi_linvarcha_c2a_mod::multiplyadjoint	(	type(fv3jedi_linvarcha_c2a), intent(in)	self,
		type(fv3jedi_geom), intent(inout)	geom,
		type(fv3jedi_increment), intent(inout)	dxa,
		type(fv3jedi_increment), intent(inout)	dxc
	)

Definition at line 230 of file fv3jedi_linvarcha_c2a_mod.f90.

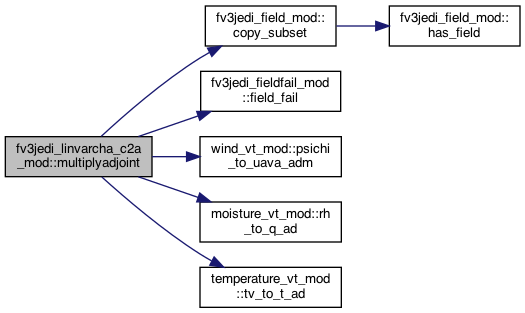

Here is the call graph for this function:

Here is the caller graph for this function:

multiplyinverse()

subroutine, public fv3jedi_linvarcha_c2a_mod::multiplyinverse	(	type(fv3jedi_linvarcha_c2a), intent(in)	self,
		type(fv3jedi_geom), intent(inout)	geom,
		type(fv3jedi_increment), intent(in)	dxa,
		type(fv3jedi_increment), intent(inout)	dxc
	)

Definition at line 354 of file fv3jedi_linvarcha_c2a_mod.f90.

Here is the caller graph for this function:

multiplyinverseadjoint()

subroutine, public fv3jedi_linvarcha_c2a_mod::multiplyinverseadjoint	(	type(fv3jedi_linvarcha_c2a), intent(in)	self,
		type(fv3jedi_geom), intent(inout)	geom,
		type(fv3jedi_increment), intent(in)	dxc,
		type(fv3jedi_increment), intent(inout)	dxa
	)

Definition at line 379 of file fv3jedi_linvarcha_c2a_mod.f90.

Here is the caller graph for this function:
